LS Tractor

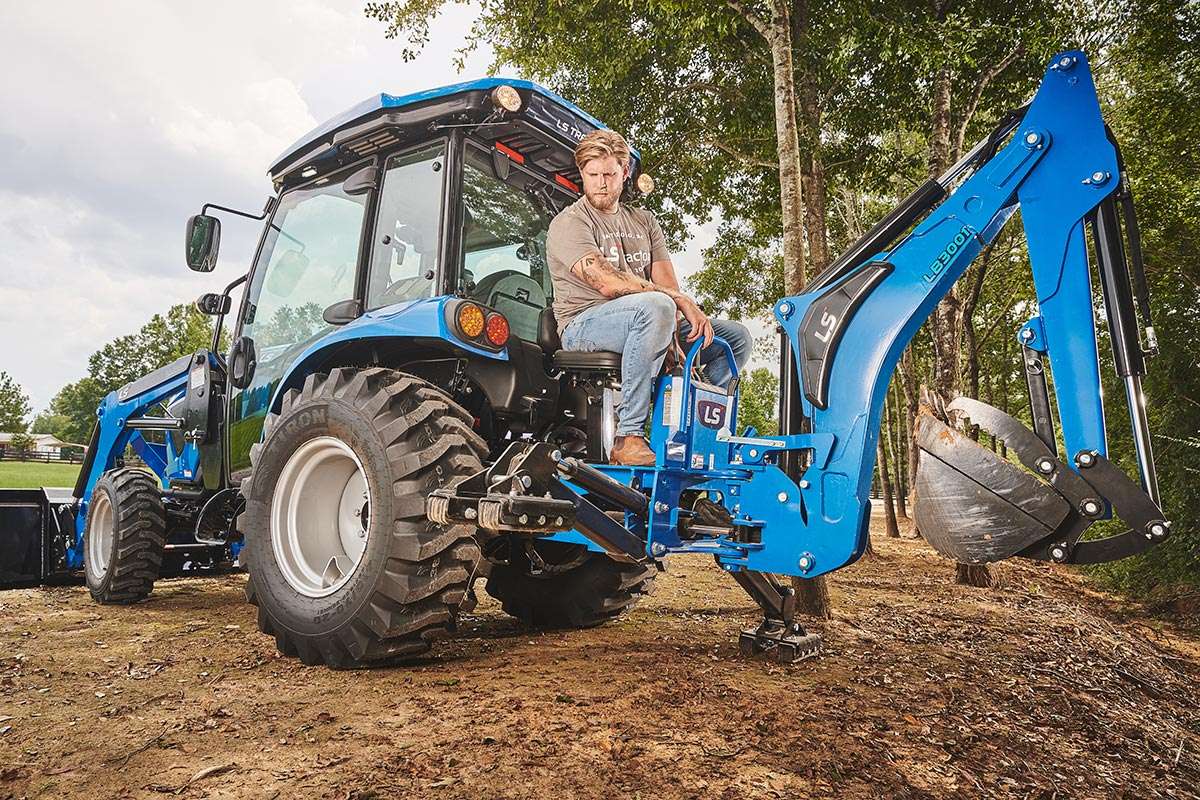

MT2 Series: MT232hc

31.7 HP. Factory cab. Heat and AC standard. 2,506 lbs of loader lift. Yanmar CRDI diesel with DPF.

The LS MT232HC is the middle ground most Colorado property owners are actually looking for — more horsepower than the MT226HC, factory cab comfort, and a loader that lifts 2,506 lbs. All in a compact footprint that fits a 69-inch wheelbase and a 66-inch width.

Cruise control with linked pedals. TF-LCD instrument panel. E/G RPM interlocking joystick switch for on-demand loader speed boost. 26.2 PTO horsepower to run a 6-foot rotary cutter or a finish mower without working the machine to death.

If the MT226HC is not quite enough and the MT242HC is more than you need, the MT232HC is the answer.

📞 Contact Legacy Tractors in Fort Collins — (970) 482-4803

Frequently Asked Questions
LS MT232HC

What is the LS MT232HC and who is it built for?

The LS MT232HC is a 31.7 horsepower factory-enclosed cab compact tractor powered by a 3-cylinder Yanmar CRDI diesel engine. It sits between the MT226HC and the MT242HC in the LS MT2 cab lineup — offering more horsepower and a higher loader lift than the MT226HC, while maintaining the same compact 69-inch wheelbase. It is built for Colorado property owners running 10 to 30 acres who need factory cab comfort year-round, significant loader capacity at 2,506 lbs, and 26.2 PTO horsepower for mowing, cutting, and hay work. Available at Legacy Tractors in Fort Collins, Colorado.

Does the MT232HC have a DPF?

Yes. The MT232HC is equipped with a Diesel Particulate Filter (DPF) as part of its Tier 4 emissions compliance. This is confirmed in the LS operator’s manual, which specifically notes the DPF switch applies to MT232 and MT242 models. The TF-LCD instrument panel displays regeneration time so you can monitor DPF status during operation. At Colorado elevations above 5,000 feet, DPF regeneration cycles may be more frequent depending on load conditions. Operate the tractor under load regularly to allow passive regeneration and avoid extended low-load idling. A block heater — available as an option — is strongly recommended for Colorado winters. Contact Legacy Tractors for high-altitude DPF maintenance guidance specific to your operation.

How much can the MT232HC lift?

The MT232HC delivers 2,506 lbs of front loader lift capacity using the LL3303 loader — the same loader lift as the MT242HC despite having fewer cylinders and lower overall horsepower. The 3-point hitch lifts 1,808 lbs at the hitch end on a Category I hitch with hydraulic position control. Bucket digging force is 3,663 lbs and backhoe digging depth is 97.2 inches. The E/G RPM interlocking joystick switch allows you to momentarily boost engine RPM for faster loader speed and lift even at low operating RPM — a practical advantage during precise loader work.

How does the MT232HC compare to the MT226HC?

Both are factory cab tractors on the same compact frame, but the MT232HC steps up meaningfully in several areas. The MT232HC produces 31.7 gross HP versus 23.9 HP on the MT226HC, and 26.2 PTO HP versus 19 PTO HP — giving it noticeably more capability for larger implements and heavier work. The loader lift jumps from 1,965 lbs on the MT226HC to 2,506 lbs on the MT232HC. The MT232HC also includes DPF while the MT226HC does not. Both share the same 69-inch wheelbase, 66-inch width, 11.4-gallon fuel tank, and Yanmar CRDI engine displacement of 100.2 cubic inches. The MT232HC weighs slightly more at 3,721 lbs versus 3,649 lbs. For operators who have outgrown the MT226HC’s capability or are regularly running implements at the upper edge of its PTO HP, the MT232HC is the logical next step.

How does the MT232HC compare to the MT242HC?

The MT232HC and MT242HC are both factory cab models with identical loader lift at 2,506 lbs and the same hydraulic system output. The key differences are engine size and wheelbase. The MT242HC runs a 4-cylinder Yanmar CRDI at 42.5 HP and 34.8 PTO HP with a 133.6 cu in displacement and a 74-inch wheelbase. The MT232HC runs a 3-cylinder Yanmar CRDI at 31.7 HP and 26.2 PTO HP with a 100.2 cu in displacement and a 69-inch wheelbase. The MT232HC is more maneuverable in tighter spaces due to the shorter wheelbase, while the MT242HC handles larger implements and heavier sustained PTO loads. Both models include DPF. For most 10–25 acre Colorado properties, the MT232HC delivers sufficient capability at a lower cost and in a more compact package.

What implements work best with the MT232HC?

With 26.2 PTO horsepower, the MT232HC handles a 6-foot finish mower comfortably under most conditions. A 5 to 6-foot rotary cutter is well within its capability for brush and pasture work. Box blades, tillers, rear blades, post hole diggers, baler, and rake are all well-suited to this tractor. The 2,506 lb loader lift handles gravel, compost, bale moving, and snow removal without difficulty. Mid PTO — available as an option at purchase — expands implement compatibility if needed.

What transmission does the MT232HC use?

The MT232HC uses a Hydrostatic Drive (HST) transmission with 3 ranges — Low, Mid, and High. There is no clutch pedal for direction changes. Cruise control with linked pedal is standard, meaning engine RPM automatically matches your forward and reverse HST pedal input. This significantly reduces operator fatigue during repetitive loader cycles and long mowing sessions.

What financing is available on the MT232HC at Legacy Tractors?

Legacy Tractors offers competitive financing on LS tractor models including the MT232HC. Current offers include 2.99% for 120 months on select MT2 models and up to $8,000 cash rebate on qualifying cash purchases. Contact Legacy Tractors directly at (970) 482-4803 or visit LegacyTractors.com for current rates and availability.

Owners Manual:
LS MT232HC
