LS Tractor

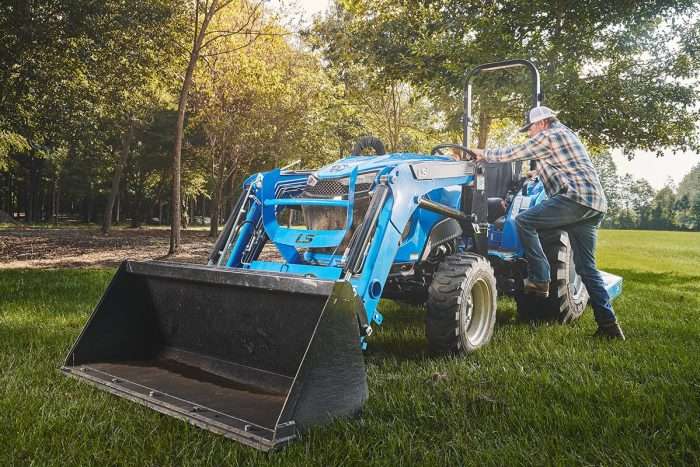

MT2 Series: MT232H

31.7 HP. 2,506 lb loader lift. Yanmar CRDI diesel. No DPF. No DEF.

The LS MT232H is what happens when you need more machine than the MT226 can deliver but you are not ready to step into the MT3 price range. Nearly 600 more pounds of loader lift than the MT226. 26.2 PTO horsepower. Same proven 3-Range HST platform — and the same complete standard equipment list including cruise control, telescopic lower links, rear remote valves, and suspension seat.

This is the compact tractor for Colorado properties that mean serious business.

📞 Contact Legacy Tractors in Fort Collins for current availability and offers.

Frequently Asked Questions

What is the LS MT232H and who is it built for?

The LS MT232H is a 31.7 HP compact tractor in the MT2E Series, powered by a Yanmar 3-cylinder liquid-cooled CRDI diesel engine with no DPF and no DEF. Built for Colorado property owners managing 10 to 30 acres who need more loader capacity and PTO power than the MT226 delivers, without stepping into the MT3 price range. Available at Legacy Tractors in Fort Collins.

How much can the MT232H lift?

The MT232H loader lifts 2,506 lbs — nearly 550 lbs more than the MT226HE and MT226HC. The 3-point hitch lifts 1,808 lbs at the hitch end on a Category I connection. Bucket digging force is 3,663 lbs with a digging depth of 97.2 inches when paired with a backhoe. For Colorado buyers moving heavy hay bales, gravel, manure, and snow this is a meaningful real-world upgrade over the MT226 series.

What engine does the MT232H use and does it require a DPF?

The MT232H uses a Yanmar 3-cylinder liquid-cooled CRDI diesel engine with 100.2 cubic inch displacement producing 31.7 gross HP at 2,600 RPM. It is Tier 4 compliant without a diesel particulate filter and without DEF fluid. Zero regeneration cycles at any altitude — a direct advantage for Colorado buyers operating above 5,000 feet where DPF-equipped machines clog faster and require more frequent maintenance.

What is the difference between the MT232H and the MT226HE?

The MT232H produces 31.7 HP versus 24.6 HP on the MT226HE — nearly 7 more horsepower. Loader lift jumps from 1,965 lbs to 2,506 lbs. PTO output increases from 17.1 HP to 26.2 HP. Total hydraulic flow increases from 11.7 GPM to 11.7 GPM with a different pump split — implement pump is 6.7 GPM versus 7.1 GPM. The MT232H also weighs more at 3,254 lbs versus 3,007 lbs providing better stability. Both use a 3-Range HST and share the same footprint at 66 inches wide and 69 inch wheelbase.

What comes standard on the MT232H?

Standard equipment includes: 1 pair rear remote valves, 3-pair loader valve, engine RPM interlock switch with joystick, cruise control with linked pedal, telescopic lower links, stabilizer check link, external lift control lever, drawbar, LED headlamps, TF-LCD instrument panel, 12V outlet, engine kill switch at rear fender, rubber mat, suspension seat with armrest, LH and RH side steps, and toolbox.

Does the MT232H come with rear remote valves standard?

Yes — 1 pair of rear remote valves is included as standard. A second set is available as an option and is strongly recommended for buyers planning to run grapple buckets, hydraulic top links, or remote-actuated implements. The 3rd function extension pipe is also available as an option. Order both at purchase — retrofitting after delivery costs significantly more.

What implement sizes work best on the MT232H?

With 26.2 PTO HP the MT232H handles a 6-foot rotary cutter comfortably in normal conditions. A 72-inch finish mower is an ideal match. Rotary tillers up to 6 feet work well. The higher loader lift capacity of 2,506 lbs makes the MT232H well suited to heavier grapple work, large round bale handling, and substantial gravel and snow moving operations on Colorado Front Range properties.

How does the MT232H handle on Colorado slopes?

At 3,254 lbs with a 69-inch wheelbase and standard 4WD the MT232H provides solid stability on Colorado’s uneven terrain. Wheel spacers are recommended for meaningful slope work and are available through Legacy Tractors. Always keep the loader bucket low when traveling on grades. The machine weight advantage over the MT226 series improves traction and stability on hillside pastures and mountain property terrain.

How does the MT232H compare to the MT226HE and MT342HC?

The MT232H sits between the MT226 and MT3 series. It delivers 31.7 HP and 2,506 lb loader lift — significantly more capable than the MT226HE at 24.6 HP and 1,965 lbs — while staying below the MT342HC’s 42 HP and $38,000-plus price point. For Colorado buyers who have outgrown sub-30 HP machines but do not need a full MT3, the MT232H is the correct step up.

What financing is available on the MT232H at Legacy Tractors?

The MT232H qualifies for 2.99% financing for 120 months on select MT2 models. Select configurations may qualify for 0% financing for up to 120 months. Cash purchases qualify for up to $8,000 in LS rebate incentives. Contact Legacy Tractors in Fort Collins for current on-lot pricing and active promotions.
