Is the KIOTI DK4520 four-wheel drive?

Yes, the KIOTI DK4520 comes with mechanical four-wheel drive for improved traction and stability in varying terrain conditions.

What is the hydraulic capacity of the KIOTI DK4520?

The DK4520 has a hydraulic pump capacity of 55.1 liters per minute (14.56 gallons per minute), supporting loader work and implement operation.

What type of PTO does the KIOTI DK4520 have?

The DK4520 features an independent rear PTO operating at 540 rpm with a standard 1-3/8 inch 6-spline shaft.

What fluids are required for the KIOTI DK4520?

The DK4520 requires engine oil, transmission fluid, coolant, and grease for proper operation. Engine oil capacity is approximately 1.95 gallons, and transmission fluid capacity is approximately 11.4 gallons.

What should be checked before operating the KIOTI DK4520?

Before operating the DK4520, owners should check fuel levels, engine oil, transmission fluid, coolant, tire condition, lights, gauges, and perform a full walk-around inspection.

How does the 3-point hitch work on the KIOTI DK4520?

The KIOTI DK4520 uses a Category I 3-point hitch designed for standard implements. The manual recommends using proper ballast and ensuring correct attachment to maintain stability and safe operation.

Does the KIOTI DK4520 require ballast for safe operation?

Yes, the manual recommends using proper ballast weight, especially when using rear implements, to maintain balance and prevent the front end from lifting.

What are the main safety precautions when operating the KIOTI DK4520?

Key safety precautions include using the seatbelt with ROPS, avoiding operation under fatigue or alcohol, keeping bystanders clear, checking surroundings before moving, and following all safety decals and operating instructions.

What does the manual say about operating on slopes?

The manual warns to use extreme caution on slopes, avoid sudden turns, maintain controlled speeds, and avoid conditions that could lead to tipping or loss of traction.

KIOTI

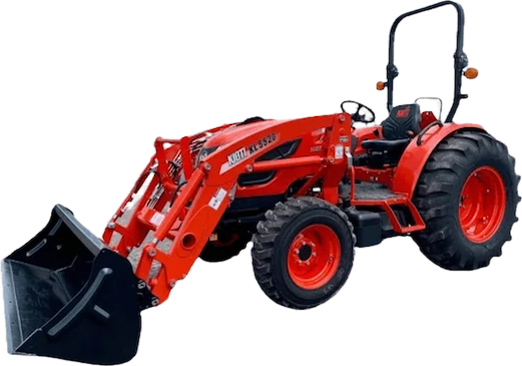

DK Series:DK4520

General Information

Loader Lift Capacity

2,474 lbs

Hitch Lift Capacity

2,716 lbs

Engine HP

45.0 HP

PTO

38.9 HP

The KIOTI DK4520 delivers serious power, precision, and durability for property owners who expect more from a compact tractor. With a 44.9-hp diesel engine, high-capacity hydraulics, and a heavy-duty 3-point hitch, this machine is built to handle digging, lifting, mowing, grading, and loader work with absolute confidence. If you need a tractor that works as hard as you do — the DK4520 is the perfect blend of strength, comfort, and year-round versatility.

Talk to a Sales Specialist

Still Have Questions or Concerns?

👉 Talk to a HUMAN
Our Sales team is available to answer any questions.

TEchnical Specifications

Engine

Model: 3HT-TM4B
Manufacturer: KIOTI
Power: 44.90 hp (33.50 kW)
Displacement: 111.40 cu. in. (1,826 cc)
Rated RPM: 2,600 rpm
Fuel Type: Diesel
Aspiration: Intercooler
Fuel Capacity: 11.90 gal (45 L)

Transmission

Type: Manual – Synchro Shuttle
Shuttle: Dry Single Stage
Main Gear: Dry Single Stage
Forward Speeds: 8
Reverse Speeds: 8
Minimum Forward Speed: 1.29 mph (2.08 km/h)
Maximum Forward Speed: 16.70 mph (26.90 km/h)
Minimum Reverse Speed: 1.26 mph (2.03 km/h)
Maximum Reverse Speed: 16.30 mph (26.20 km/h)

PTO

Type: Independent
PTO Power: 38.90 hp (29 kW)
Rear PTO Speed: 540
Mid PTO Speed: 2,000

Drive Train

Brakes: Wet Multi-Disc
Clutch: Dry Single Stage
Steering: Hydrostatic Power Steering

Hydraulics

Pump Type: Gear
Pump Capacity: 14.70 gpm (55.10 lpm)
Lift Capacity: 2,716 lb (1,232 kg)

Hitch

Type: 3-Point
Category: Category 1
Control: Position Control
Lift Capacity: 2,716 lb (1,232 kg)

Dimensions

Overall Length (with hitch): 124.30 in (3,157 mm)
Width: 62.80 in (1,596 mm)
Wheelbase: 71.30 in (1,810 mm)
Ground Clearance: 14.50 in (368 mm)
Front Tread: 49.40 in (1,254 mm)
Rear Tread: 49.30 in (1,251 mm)
Turning Radius: 8.56 ft (2.60 m)
Weight: 3,373 lb (1,530 kg)
Height: 96.80 in (2,458 mm)

Frequently Asked Questions
KIOTI DK4520

What engine is in the KIOTI DK4520?

The owner’s manual lists the KIOTI DK4520 with a 3-cylinder 1,826 cc diesel engine rated at 44.9 gross horsepower at 2,600 rpm.

What transmission does the KIOTI DK4520 use?

The DK4520 manual lists an 8 forward / 8 reverse synchro shuttle transmission with mechanical four-wheel drive.

What is the lift capacity of the KIOTI DK4520?

The manual lists a maximum lift capacity of 2,716 lbs at 24 inches behind the lift point and 2,998 lbs at the lower link ball.

What PTO does the KIOTI DK4520 have?

The DK4520 uses an independent rear PTO with a 540 rpm speed and a 1-3/8 inch 6-spline shaft.

How much fuel does the KIOTI DK4520 hold?

The manual lists an 11.9-gallon fuel tank.

How often should the KIOTI DK4520 be serviced?

The manual outlines daily checks plus service intervals at 50, 100, 200, 250, 400, 600, and 800 hours, along with annual and 2-year maintenance items.

What should owners check before operating the DK4520?

The manual includes pre-operation checks such as fuel, engine oil, transmission fluid, coolant level, lights, gauges, pedals, seat belt, and general walk-around inspection.

What does the manual say about PTO safety?

The manual says the tractor should be stopped with gears in neutral before connecting or servicing PTO equipment, and PTO shields and caps should remain in place.
