LS TRACTOR XG SERIES
XG3025 / XG3025H / XG3032 / XG3032H / XG3037 / XG3037H / XG3135 / XG3140
LS XJ2025
LS XJ 2025
QUICK PRODUCT SPECS
QUICK PRODUCT SPECIFICATIONS

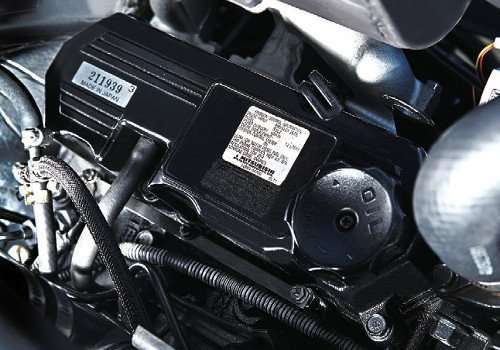

Tier 4 Mitsubishi Engine
High Efficient 3-Point Hitch
Easy to Control PTO Switch
Tier 4 Mitsubishi Engine
High Efficient 3-Point Hitch
Easy to Control PTO Switch

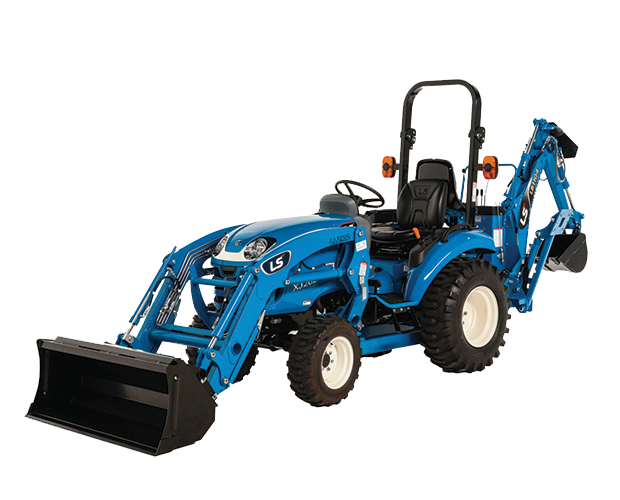

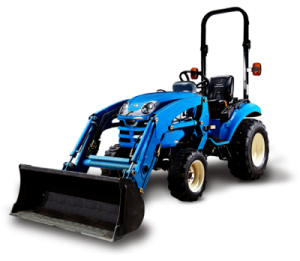

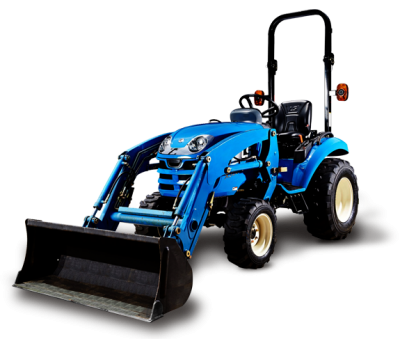

LS XJ2025H
LS XJ2025H
QUICK PRODUCT SPECIFICATIONS
QUICK PRODUCT SPECS
Tier 4 Mitsubishi Engine
Comfortable Seat
Hydrostatic Transmission
Tier 4 Mitsubishi Engine
Comfortable Seat
Hydrostatic Transmission
See Our Latest Tractor Packages
Purchase a Tractor Package to provide you with all your needs.
See Our Latest
Tractor Packages
Purchase a Tractor Package to provide you with all your needs.
Would You Like a Quote?
Simply Click the related product button below and fill out our quick form.
Financing
Fast, Secure & Confidential Online Finance Application
What Do Our Customer’s Say?
“What an absolute excellent experience! The professional staff is very down to earth and exceptionally knowledgable. I never felt as if there was any pressure in the buying experience and everything was seamless.”
Scott Farmer, CO“The staff at Legacy are so personable and friendly. They were very helpful and we felt no pressure to purchase.”
Nicole Collins, CO“I met with Gary and he showed me several models and spent his time answering my questions. Gary is NOT the high pressure salesman I expected, he is very knowledgeable and I bought the tractor and made a new friend all at that same time. He delivered the tractor to me in less that 2 hours. ”
Andy Zegan, COWhat Do Our Customer’s Say?
“What an absolute excellent experience! The professional staff is very down to earth and exceptionally knowledgable. I never felt as if there was any pressure in the buying experience and everything was seamless.”
Scott Farmer, CO“The staff at Legacy are so personable and friendly. They were very helpful and we felt no pressure to purchase.”
Nicole Collins, CO“I met with Gary and he showed me several models and spent his time answering my questions. Gary is NOT the high pressure salesman I expected, he is very knowledgeable and I bought the tractor and made a new friend all at that same time. He delivered the tractor to me in less that 2 hours. ”
Andy Zegan, COLS XG SERIES SPECIFICATIONS
Engine |
|
| Manufacturer | Mitsubishi |
| Type | 3-cylinder, Indirect injection, Water-cooled |
| Model (Tier 4) | Mitsubishi S3L2 |
| Engine HP (Gross) | 24.4 |
| PTO HP | 19.5 |
| Rated speed, RPM | 2500 |
| Displacement- cu. in. | 80.4 |
| Fuel tank capacity (gal) | 6.6 |
| Alternator | 50 Amps |
Drive Train |
|
| Transmission | Sliding Shift |
| Speeds | 6F X 2R |
| Brakes | Wet, Multi Disc |
| Steering | Hydrostatic Power Steering |
PTO |
|
| Type | Independent |
| Mid PTO | Standard(2000 rpm) |
| Rear PTO |
Standard(540 rpm) |
Hydraulic System |
|
| Implement pump gpm | 6.9 |
| Steering pump gpm | 1.1 |
| Total flow gpm | 8.0 |
| Category, 3 pt hitch | CAT 1 |
| Hitch Lift capacity, lb | 1433 |
| Lift control type | Position |
| Remote valve | 1 Pair (Optional) |
Dimensions |
|
| Overall length with 3pt | 103″ |
| Min. overall width with Ag tires | 44.9″ |
| Wheelbase | 59″ |
| Height to top of rops | 92.3″ |
Tire Size |
|
| Ag Front/Rear | 6-12/9.5-16 |
| Industrial Front/Rear | 23×8.5-12/33×12-16.5 |
| Turf Front/Rear | 23×8.5-12/33×12-16.5 |
Weight |
|
| Total weight without ballast, lb | 1785 |
Engine |
|
| Manufacturer | Mitsubishi |
| Type | 3-cylinder, Indirect injection, Water-cooled |
| Model (Tier 4) | Mitsubishi S3L2 |
| Engine HP (Gross) | 24.4 |
| PTO HP | 19.5 |
| Rated speed, RPM | 2500 |
| Displacement- cu. in. | 80.4 |
| Fuel tank capacity (gal) | 6.6 |
| Alternator | 50 Amps |
Drive Train |
|
| Transmission | Sliding Shift |
| Speeds | 6F X 2R |
| Brakes | Wet, Multi Disc |
| Steering | Hydrostatic Power Steering |
PTO |
|
| Type | Independent |
| Mid PTO | Standard(2000 rpm) |
| Rear PTO |
Standard(540 rpm) |
Hydraulic System |
|
| Implement pump gpm | 6.9 |
| Steering pump gpm | 1.1 |
| Total flow gpm | 8.0 |
| Category, 3 pt hitch | CAT 1 |
| Hitch Lift capacity, lb | 1433 |
| Lift control type | Position |
| Remote valve | 1 Pair (Optional) |
Dimensions |
|
| Overall length with 3pt | 103″ |
| Min. overall width with Ag tires | 44.9″ |
| Wheelbase | 59″ |
| Height to top of rops | 92.3″ |
Tire Size |
|
| Ag Front/Rear | 6-12/9.5-16 |
| Industrial Front/Rear | 23×8.5-12/33×12-16.5 |
| Turf Front/Rear | 23×8.5-12/33×12-16.5 |
Weight |
|
| Total weight without ballast, lb | 1785 |
LL2101 Front End Loader
| Made For | XJ2000 Series |
| Maximum Lift Height in. | 85.7 |
| Clearance with Attachment Dump in. | 65 |
| Reach at Maximum Height in. | 22 |
| Maximum Dump Angle deg. | 52° |
| Maximum Rollback Angle deg. | 43° |
| Digging Depth in. | 4.4 |
| Overall Height in Carry Position in. | 42.8 |
| Lift Capacity (@ Pivot Pin) lbs. | 1270 |
| Breakout Force (@ Pivot pin) | 1640 |
LB1104 Backhoe
| Made For | XJ2000 Series |
| Digging Depth | 79.3 |
| Reach from Centerline of Swing Pivot in. | 113.3 |
| Loading Height in. | 56.9 |
| Swing Arc deg. | 150° |
| Transport Height in. | 75.3 |
| Bucket Rotation deg. | 180° |
| Stabilizer Spread (Down Position) in. | 86.8 |
| Stabilizer Spread (Up position) in. | 55.7 |
| Bucket Cylinder Digging Force lbs. | 2069 |
