KIOTI
RX Series Compact Tractors
SHUTTLE SHIFT or PWR SHUTTLE
ROPS OR CAB
SHUTTLE SHIFT or PWR SHUTTLE
ROPS OR CAB
KIOTI RX Series
RX6620
SHUTTLE SHIFT OR POWER SHUTTLE; ROPS OR CAB
RX7320
SHUTTLE SHIFT OR POWER SHUTTLE WITH OPTIONAL CREEPER; ROPS OR CAB
The RX Series compact tractors is the ultimate solution for those seeking maximum comfort and impressive lifting capabilities. Whether you opt for the deluxe climate-controlled cab model or another variation, you can expect unparalleled comfort and convenience. Reliability and performance are showcased with the push-button 4WD and differential lock, and an easily engaged rear PTO. Enjoy the comfort of the ergonomic suspension seat and the improved visibility with the streamlined hood design. The powerful Daedong turbo engine delivers the necessary power to complete your jobs, while safety features like wet disc brakes, adjustable seat belts, headlights, safety lights, and hydrostatic power steering ensure your safety while operating the machine. The heavy-duty lift capacity of these tractors means you can take on even the toughest jobs with ease, without breaking a sweat.
Experience the power and convenience of the RX Series today!
Call (970) 482-4803 to check for availability.
Specifications
Engine HP
RX6620: 66
RX7320: 73
PTO HP
RX6620: 57.6
RX7320: 63
Transmission
Synchro Shuttle
Power Shuttle
Power Shuttle w/ Creeper
Max Lift Capacity
(24″ aft. of hitch) – varies per model
RX6620: 3,594 lbs.
RX7320: 3,898 lbs.
RX SERIES SPECIFICATIONS
• click for more info •
Features
External hyraulic
lift cylinder
The RX series tractor is equipped with two external hydraulic lift cylinders, providing a convenient and hassle-free maintenance experience. Additionally, this feature enhances the tractor’s lifting capacity up to an impressive 3,594 lbs. (1,630 kg).
Turn
assist control
The Turn Assist Control kit offers a convenient way to increase accuracy and decrease fuel usage when making sharp turns. This kit automatically reduces engine RPM by 10% for smoother, more efficient maneuvers.
Projection
working lamp
The projection head and working lamp make nighttime operation safer and easier. Enjoy more secure work and improved visibility with this new addition.

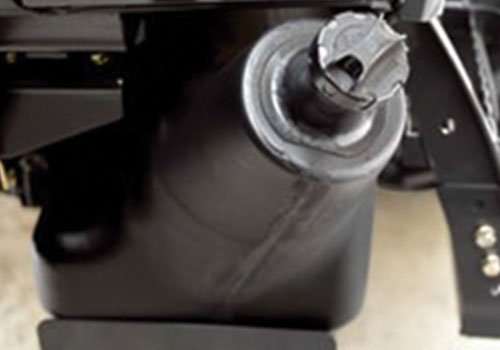

Large Capacity
gas tank
The 25 gallon fuel tank ensures that you can work for longer periods without having to constantly refuel. With the built–in fuel warning indicator lamp in the instrument panel and a buzzer, you can rest assured that you won‘t unintentionally run out of fuel.
Tractor Packages
Save money when you bundle attachments with your tractor purchase.
View our curated tractor packages or customize your own.
Build a Custom KIOTI Tractor Package
"*" indicates required fields
KIOTI RX SERIES SPECIFICATIONS
- RX6620
- RX6620 CAB
- RX7320 CAB
- RX6620 POWERSHUTTLE
- RX6620 POWERSHUTTLE CAB
- RX7320
- RX7320 POWERSHUTTLE
- RX7320 POWERSHUTTLE CAB
- RX7320 PCC
Engine
| Engine Model | 4F243T |
| Engine Gross Power | 66 hp (49.2 kW) |
| Rated Speed | 2,600 rpm |
| No. of Cylinders | 4 |
| Fuel Type | Diesel |
| Aspiration | Turbo Charged |
| Displacement | 148.6 cu.in. (2,435 cc) |
| Fuel Tank Capacity | 22.5 gal. (85 L) |
Transmission
| Transmission Type | Synchro Shuttle |
| Shuttle | Synchronized |
| Main Gear | Synchronized |
| No. of Travel Speeds – Forward / Reverse | 12F/12R |
| Min. Travel Speed of Forward w/ Ag @ Engine rated speed | 0.94 mph (1.51 km/h) |
| Max. Travel Speed of Forward w/ Ag @ Engine rated speed | 21.79 mph (35.07 km/h) |
Power Take-Off (PTO)
| PTO Type Trans | Independent |
| PTO Power | 57.6 hp (43 kW) |
| Rear PTO Speeds (1st) | 540 rpm / 540E rpm |
Brakes and Clutch
| Brakes | Wet Multi Disc |
| Clutch | Dry Single Plate |
Dimensions w/ AG Tire
| Length w/ 3-point hitch | 145 in. (3,685 mm) |
| Width | 70.9 in. (1,800 mm) |
| Height from Top of ROPS | 105.5 in. (2,680 mm) |
| Wheelbase | 82.7 in. (2,100 mm) |
| Ground Clearance | 16.5 in. (420 mm) |
| Front Tread Ag Tires – Min | 57.7 in. (1,465 mm) |
| Rear Tread Ag Tires – Min | 55.7 in. (1,415 mm) |
| Turning Radius w/ Brake | 10.2 ft. (3.1 m) |
Hydraulics
| Pump | Gear |
| Pump Capacity (Max. Flow Rate) | 17.9 gpm (67.6 L/min) |
3-Point Hitch
| Standard Category | Category II |
| Lift Capacity, 24″ aft of hitch | 3,594 lbs. (1,630 kg) |
| Control Type | Position, Draft and Mixed |
Weight
| Weight with Ag Tires | 5,202 lbs. (2,360 kg) |
Engine
| Engine Model | 4F243T |
| Engine Gross Power | 66 hp (49.2 kW) |
| Rated Speed | 2,600 rpm |
| No. of Cylinders | 4 |
| Fuel Type | Diesel |
| Aspiration | Turbo Charged |
| Displacement | 148.6 cu.in. (2,435 cc) |
| Fuel Tank Capacity | 25 gal. (95 L) |
Transmission
| Transmission Type | Synchro Shuttle |
| Shuttle | Synchronized |
| Main Gear | Synchronized |
| No. of Travel Speeds – Forward / Reverse | 12F/12R |
| Min. Travel Speed of Forward w/ Ag @ Engine rated speed | 0.94 mph (1.51 km/h) |
| Max. Travel Speed of Forward w/ Ag @ Engine rated speed | 21.79 mph (35.07 km/h) |
Power Take-Off (PTO)
| PTO Type Trans | Independent |
| PTO Power | 57.6 hp (43 kW) |
| Rear PTO Speeds (1st) | 540 rpm / 540E rpm |
Brakes and Clutch
| Brakes | Wet Multi Disc |
| Clutch | Dry Single Plate |
Dimensions w/ AG Tire
| Length w/ 3-point hitch | 145 in. (3,685 mm) |
| Width | 70.9 in. (1,800 mm) |
| Height from Top of Cab | 103.6 in. (2,630 mm) |
| Wheelbase | 82.7 in. (2,100 mm) |
| Ground Clearance | 16.5 in. (420 mm) |
| Front Tread Ag Tires – Min | 57.7 in. (1,465 mm) |
| Rear Tread Ag Tires – Min | 55.7 in. (1,415 mm) |
| Turning Radius w/ Brake | 10.2 ft. (3.1 m) |
Hydraulics
| Pump | Gear |
| Pump Capacity (Max. Flow Rate) | 17.9 gpm (67.6 L/min) |
3-Point Hitch
| Standard Category | Category II |
| Lift Capacity, 24″ aft of hitch | 3,594 lbs. (1,630 kg) |
| Control Type | Position, Draft and Mixed |
Weight
| Weight with Ag Tires | 5,798 lbs. (2,630 kg) |
Engine
| Engine | 4F243T |
| Engine Gross Power | 73 hp (54.4 kW) |
| Rated Speed | 2,600 rpm |
| No. of Cylinders | 4 |
| Fuel Type | Diesel |
| Aspiration | Turbo Charged |
| Displacement | 148.6 cu.in. (2,435 cc) |
| Fuel Tank Capacity | 22.5 gal. (85 L) |
Transmission
| Transmission Type | Synchro Shuttle |
| Shuttle | Synchronized |
| Main Gear | Synchronized |
| No. of Travel Speeds – Forward / Reverse | 12F/12R |
| Min. Travel Speed of Forward w/ Ag @ Engine rated speed | 1.01 mph (1.63 km/h) |
| Max. Travel Speed of Forward w/ Ag @ Engine rated speed | 23.53 mph (37.86 km/h) |
Power Take-Off (PTO)
| PTO Type Trans | Independent |
| PTO Power | 63 hp (47 kW) |
| Rear PTO Speeds (1st) | 540 rpm / 540E rpm |
Brakes and Clutch
| Brakes | Wet Multi Disc |
| Clutch | Dry Single Plate |
Dimensions w/ AG Tire
| Length w/ 3-point hitch | 146.3 in. (3,715 mm) |
| Width | 77.2 in. (1,960 mm) |
| Height from Top of ROPS | 107.5 in. (2,730 mm) |
| Wheelbase | 83.9 in. (2,130 mm) |
| Ground Clearance | 17.3 in. (440 mm) |
| Front Tread Ag Tires – Min | 58.1 in. (1,475 mm) |
| Rear Tread Ag Tires – Min | 59.6 in. (1,515 mm) |
| Turning Radius w/ Brake | 11.2 ft. (3.4 m) |
Hydraulics
| Pump | Gear |
| Pump Capacity (Max. Flow Rate) | 19.23 gpm (72.8 L/min) |
3-Point Hitch
| Standard Category | Category II |
| Lift Capacity, 24″ aft of hitch | 3,898 lbs. (1,768 kg) |
| Control Type | Position, Draft and Mixed |
Weight
| Weight with Ag Tires | 5,589 lbs. (2,535 kg) |
Engine
| Engine Model | 4F243T |
| Engine Gross Power | 66 hp (49.2 kW) |
| Rated Speed | 2,600 rpm |
| No. of Cylinders | 4 |
| Fuel Type | Diesel |
| Aspiration | Turbo Charged |
| Displacement | 148.6 cu.in. (2,435 cc) |
| Fuel Tank Capacity | 22.5 gal. (85 L) |
Transmission
| Transmission Type | Power Shuttle |
| Shuttle | Synchronized |
| Main Gear | Synchronized |
| No. of Travel Speeds – Forward / Reverse | 12F/12R |
| Min. Travel Speed of Forward w/ Ag @ Engine rated speed | 0.94 mph (1.51 km/h) |
| Max. Travel Speed of Forward w/ Ag @ Engine rated speed | 21.79 mph (35.07 km/h) |
Power Take-Off (PTO)
| PTO Type Trans | Independent |
| PTO Power | 57.6 hp (43 kW) |
| Rear PTO Speeds (1st) | 540 rpm / 540E rpm |
Brakes and Clutch
| Brakes | Wet Multi Disc |
| Clutch | Wet Disc |
Dimensions w/ AG Tire
| Length w/ 3-point hitch | 145 in. (3,685 mm) |
| Width | 70.9 in. (1,800 mm) |
| Height from Top of ROPS | 105.5 in. (2,680 mm) |
| Wheelbase | 82.7 in. (2,100 mm) |
| Ground Clearance | 16.5 in. (420 mm) |
| Front Tread Ag Tires – Min | 57.7 in. (1,465 mm) |
| Rear Tread Ag Tires – Min | 55.7 in. (1,415 mm) |
| Turning Radius w/ Brake | 10.2 ft. (3.1 m) |
Hydraulics
| Pump | Gear |
| Pump Capacity (Max. Flow Rate) | 17.9 gpm (67.6 L/min) |
3-Point Hitch
| Standard Category | Category II |
| Lift Capacity, 24″ aft of hitch | 3,594 lbs, (1,630 kg) |
| Control Type | Position, Draft and Mixed |
Weight
| Weight with Ag Tires | 5,148 lbs, (2,335 kg) |
Engine
| Engine Model | 4F243T |
| Engine Gross Power | 66 hp (49.2 kW) |
| Rated Speed | 2,600 rpm |
| No. of Cylinders | 4 |
| Fuel Type | Diesel |
| Aspiration | Turbo Charged |
| Displacement | 148.6 cu.in. (2,435 cc) |
| Fuel Tank Capacity | 25 gal. (95 L) |
Transmission
| Transmission Type | Power Shuttle |
| Shuttle | Synchronized |
| Main Gear | Synchronized |
| No. of Travel Speeds – Forward / Reverse | 12F/12R |
| Min. Travel Speed of Forward w/ Ag @ Engine rated speed | 0.94 mph (1.51 km/h) |
| Max. Travel Speed of Forward w/ Ag @ Engine rated speed | 21.79 mph (35.07 km/h) |
Power Take-Off (PTO)
| PTO Type Trans | Independent |
| PTO Power | 57.6 hp (43 kW) |
| Rear PTO Speeds (1st) | 540 rpm / 540E rpm |
Brakes and Clutch
| Brakes | Wet Multi Disc |
| Clutch | Wet Disc |
Dimensions w/ AG Tire
| Length w/ 3-point hitch | 145 in. (3,685 mm) |
| Width | 70.9 in. (1,800 mm) |
| Height from Top of Cab | 103.6 in. (2,630 mm) |
| Wheelbase | 82.7 in. (2,100 mm) |
| Ground Clearance | 16.5 in. (420 mm) |
| Front Tread Ag Tires – Min | 57.7 in. (1,465 mm) |
| Rear Tread Ag Tires – Min | 55.7 in. (1,415 mm) |
| Turning Radius w/ Brake | 10.2 ft. (3.1 m) |
Hydraulics
| Pump | Gear |
| Pump Capacity (Max. Flow Rate) | 17.9 gpm (67.6 L/min) |
3-Point Hitch
| Standard Category | Category II |
| Lift Capacity, 24″ aft of hitch | 3,594 lbs. (1,630 kg) |
| Control Type | Position, Draft and Mixed |
Weight
| Weight with Ag Tires | 5,732 lbs. (2,600 kg) |
Engine
| Engine | 4F243T |
| Engine Gross Power | 73 hp (54.4 kW) |
| Rated Speed | 2,600 rpm |
| No. of Cylinders | 4 |
| Fuel Type | Diesel |
| Aspiration | Turbo Charged |
| Displacement | 148.6 cu.in. (2,435 cc) |
| Fuel Tank Capacity | 22.5 gal. (85 L) |
Transmission
| Transmission Type | Synchro Shuttle |
| Shuttle | Synchronized |
| Main Gear | Synchronized |
| No. of Travel Speeds – Forward / Reverse | 12F/12R |
| Min. Travel Speed of Forward w/ Ag @ Engine rated speed | 1.01 mph (1.63 km/h) |
| Max. Travel Speed of Forward w/ Ag @ Engine rated speed | 23.53 mph (37.86 km/h) |
Power Take-Off (PTO)
| PTO Type Trans | Independent |
| PTO Power | 63 hp (47 kW) |
| Rear PTO Speeds (1st) | 540 rpm / 540E rpm |
Brakes and Clutch
| Brakes | Wet Multi Disc |
| Clutch | Dry Single Plate |
Dimensions w/ AG Tire
| Length w/ 3-point hitch | 146.3 in. (3,715 mm) |
| Width | 77.2 in. (1,960 mm) |
| Height from Top of ROPS | 107.5 in. (2,730 mm) |
| Wheelbase | 83.9 in. (2,130 mm) |
| Ground Clearance | 17.3 in. (440 mm) |
| Front Tread Ag Tires – Min | 58.1 in. (1,475 mm) |
| Rear Tread Ag Tires – Min | 59.6 in. (1,515 mm) |
| Turning Radius w/ Brake | 11.2 ft. (3.4 m) |
Hydraulics
| Pump | Gear |
| Pump Capacity (Max. Flow Rate) | 19.23 gpm (72.8 L/min) |
3-Point Hitch
| Standard Category | Category II |
| Lift Capacity, 24″ aft of hitch | 3,898 lbs. (1,768 kg) |
| Control Type | Position, Draft and Mixed |
Weight
| Weight with Ag Tires | 5,589 lbs. (2,535 kg) |
Engine
| Engine | 4F243T |
| Engine Gross Power | 73 hp (54.4 kW) |
| Rated Speed | 2,600 rpm |
| No. of Cylinders | 4 |
| Fuel Type | Diesel |
| Aspiration | Turbo Charged |
| Displacement | 148.6 cu.in. (2,435 cc) |
| Fuel Tank Capacity | 22.5 gal. (85 L) |
Transmission
| Transmission Type | Power Shuttle |
| Shuttle | Synchronized |
| Main Gear | Synchronized |
| No. of Travel Speeds – Forward / Reverse | 12F/12R |
| Min. Travel Speed of Forward w/ Ag @ Engine rated speed | 1.01 mph (1.63 km/h) |
| Max. Travel Speed of Forward w/ Ag @ Engine rated speed | 23.53 mph (37.86 km/h) |
Power Take-Off (PTO)
| PTO Type Trans | Independent |
| PTO Power | 63 hp (47 kW) |
| Rear PTO Speeds (1st) | 540 rpm / 540E rpm |
Brakes and Clutch
| Brakes | Wet Multi Disc |
| Clutch | Wet Disc |
Dimensions w/ AG Tire
| Length w/ 3-point hitch | 146.3 in. (3,715 mm) |
| Width | 77.2 in. (1,960 mm) |
| Height from Top of ROPS | 107.5 in. (2,730 mm) |
| Wheelbase | 83.9 in. (2,130 mm) |
| Ground Clearance | 17.3 in. (440 mm) |
| Front Tread Ag Tires – Min | 58.1 in. (1,475 mm) |
| Rear Tread Ag Tires – Min | 59.6 in. (1,515 mm) |
| Turning Radius w/ Brake | 11.2 ft. (3.4 m) |
Hydraulics
| Pump | Gear |
| Pump Capacity (Max. Flow Rate) | 19.23 gpm (72.8 L/min) |
3-Point Hitch
| Standard Category | Category II |
| Lift Capacity, 24″ aft of hitch, lb (kg) | 3,898 lbs. (1,768 kg) |
| Control Type | Position, Draft and Mixed |
Weight
| Weight with Ag Tires | 5,600 lbs. (2,540 kg) |
Engine
| Engine | 4F243T |
| Engine Gross Power | 73 hp (54.4 kW) |
| Rated Speed | 2,600 rpm |
| No. of Cylinders | 4 |
| Fuel Type | Diesel |
| Aspiration | Turbo Charged |
| Displacement | 148.6 cu.in. (2,435 cc) |
| Fuel Tank Capacity | 25 gal. (95 L) |
Transmission
| Transmission Type | Power Shuttle |
| Shuttle | Synchronized |
| Main Gear | Synchronized |
| No. of Travel Speeds – Forward / Reverse | 12F/12R |
| Min. Travel Speed of Forward w/ Ag @ Engine rated speed | 1.01 mph (1.63 km/h) |
| Max. Travel Speed of Forward w/ Ag @ Engine rated speed | 23.53 mph (37.86 km/h) |
Power Take-Off (PTO)
| PTO Type Trans | Independent |
| PTO Power | 63 hp (47 kW) |
| Rear PTO Speeds (1st) | 540 rpm / 540E rpm |
Brakes and Clutch
| Brakes | Wet Multi Disc |
| Clutch | Wet Disc |
Dimensions w/ AG Tire
| Length w/ 3-point hitch | 146.3 in. (3,715 mm) |
| Width | 77.2 in. (1,960 mm) |
| Height from Top of Cab | 104.5 in. (2,655 mm) |
| Wheelbase | 83.9 in. (2,130 mm) |
| Ground Clearance | 17.3 in. (440 mm) |
| Front Tread Ag Tires – Min | 58.1 in. (1,475 mm) |
| Rear Tread Ag Tires – Min | 59.6 in. (1,515 mm) |
| Turning Radius w/ Brake | 11.2 ft. (3.4 m) |
Hydraulics
| Pump | Gear |
| Total Pump Capacity (Max. Flow Rate) Flow | 19.23 gpm (72.8 L/min) |
3-Point Hitch
| Standard Category | Category II |
| Lift Capacity, 24″ aft of hitch | 3,898 lbs. (1,768 kg) |
| Control Type | Position, Draft and Mixed |
Weight
| Weight with Ag Tires | 6,162 lbs. (2,795 kg) |
Engine
| Engine | 4F243T |
| Engine Gross Power | 73 hp (54.4 kW) |
| Rated Speed | 2,600 rpm |
| No. of Cylinders | 4 |
| Fuel Type | Diesel |
| Aspiration | Turbo Charged |
| Displacement | 148.6 cu.in. (2,435 cc) |
| Fuel Tank Capacity | 25 gal. (95 L) |
Transmission
| Transmission Type | Power Shuttle w/Creeper |
| Shuttle | Synchronized |
| Main Gear | Synchronized |
| No. of Travel Speeds – Forward / Reverse | 24F/24R |
| Min. Travel Speed of Forward w/ Ag @ Engine rated speed | .11 mph (.17 km/h) |
| Max. Travel Speed of Forward w/ Ag @ Engine rated speed | 23.53 mph (37.86 km/h) |
Power Take-Off (PTO)
| PTO Type Trans | Independent |
| PTO Power | 63 hp (47 kW) |
| Rear PTO Speeds (1st) | 540 rpm / 540E rpm |
Brakes and Clutch
| Brakes | Wet Multi Disc |
| Clutch | Wet Disc |
Dimensions w/ AG Tire
| Length w/ 3-point hitch | 146.3 in. (3,715 mm) |
| Width | 77.2 in. (1,960 mm) |
| Height from Top of Cab | 104.5 in. (2,655 mm) |
| Wheelbase | 83.9 in. (2,130 mm) |
| Ground Clearance | 17.3 in. (440 mm) |
| Front Tread Ag Tires – Min | 58.1 in. (1,475 mm) |
| Rear Tread Ag Tires – Min | 59.6 in. (1,515 mm) |
| Turning Radius w/ Brake | 11.2 ft. (3.4 m) |
Hydraulics
| Pump | Gear |
| Pump Capacity (Max. Flow Rate) | 19.2 gpm (72.8 L/min) |
3-Point Hitch
| Standard Category | Category II |
| Lift Capacity, 24″ aft of hitch | 3,898 lbs. (1,768 kg) |
| Control Type | Position, Draft and Mixed |
Weight
| Weight with Ag Tires | 6,162 lbs. (2,795 kg) |
Would You Like a Quote?
Simply Click the related product button below and fill out our quick form.
Financing
Fast, Secure & Confidential Online Finance Application
KIOTI Tractor Near Me
Looking for a KIOTI tractor dealer near you?
You can find a KIOTI tractor in Ft. Collins, CO, conveniently located to serve the surrounding areas.
Visit us today and explore our range of KIOTI tractors, parts, and services.
Get directions from your current location by clicking the button below.
LEGACY TRACTOR SALES & SERVICE, INC.
1845 North College Avenue • Ft. Collins, CO 80524
(970) 482-4803 • info@legacytractors.com
