KIOTI
NX Series Compact Tractors
KIOTI NX Series
MANUAL / HST / CAB
NX4010
NX4510
NX5010
NX5510
NX6010
Introducing the impressive KIOTI NX Series, equipped with the revolutionary Daedong® ECO Technology. These remarkable utility tractors come in a range of models, boasting power and fuel efficiency of up to 60 hp. Experience the dependable performance of these eco-friendly workhorses, designed to tackle any task with ease.
Discover the versatility of the KIOTI NX Series, offering both synchro shuttle transmission and hydrostatic transmission options. Whether you prefer an open station (ROPS) or a deluxe cab with a panoramic view, we have you covered. With torque compensation technology, these tractors deliver consistent torque levels under any conditions, ensuring reliable performance. Get in touch with us today to request a quote and experience the power of the KIOTI NX Series for yourself!
Call (970) 482-4803 to check for availability.
Specifications
Engine HP
NX4510 / CAB: 45
NX4510 HST / CAB: 45
NX5010 / CAB: 50
NX5010 HST / CAB: 50
NX5510 / CAB: 55
NX5510 HST / CAB: 55
NX6010 / CAB: 60
NX6010 HST / CAB: 60
PTO HP
NX4510 / CAB: 37.6
NX4510 HST / CAB: 33.9
NX5010 / CAB: 41.8
NX5010 HST / CAB: 38.9
NX5510 / CAB: 46
NX5510 HST / CAB: 43.1
Nx6010 HST / CAB: 48.3
Transmission
Manual or Synchro Shuttle
Max Lift Capacity
(24″ aft. of hitch) – varies per model
3,177 lbs.
NX SERIES SPECIFICATIONS
• click for more info •
Features

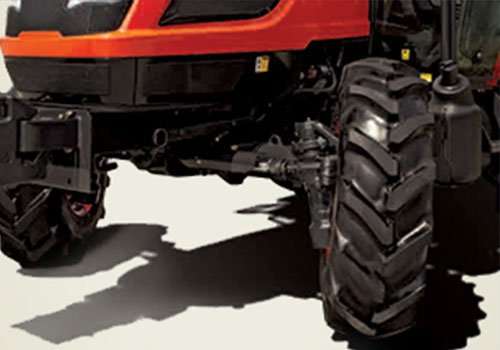

power
steering
Fatigue is reduced and productivitiy increases with the hydrostatic power steering that makes turning much easier than traditional steering. The driver can adjust the steering wheel to fit their comfort..
Hydraulic
Independent PTO
The engine rpm is dropped by 10% with the optional turn assist control kit. This reduces fuel consumption and will enable the tractor to make more precise tight turns.
Projection
working lamp
Finish your projects easier and safer at night with the new projection head and working lamp.
Ergonomic
Joystick Lever
Control the front loader with ease using our ergonomically designed joystick lever.
Tractor Packages
Save money when you bundle attachments with your tractor purchase.
View our curated tractor packages or customize your own.
Build a Custom KIOTI Tractor Package
"*" indicates required fields
Kioti NX SERIES SPECIFICATIONS
Engine
| Engine Model | 3F183T |
| Engine Gross Power | 45 hp (33.6 kW) |
| Rated Speed | 2,600 rpm |
| No. of Cylinders | 3 |
| Fuel Type | Diesel |
| Aspiration | Turbo Charged |
| Displacement | 111.4 cu. in. (1,826 cc) |
| Fuel Tank Capacity | 14.8 gal. (56 L) |
Transmission
| Transmission Type | Manual |
| Shuttle | Synchronized |
| Main Gear | Synchronized |
| No. of Travel Speeds – Forward / Reverse | 24 x 24 |
| Min. Travel Speed of Forward w/ Ag @ Engine rated speed | 0.11 mph (0.17 km/h) |
| Max. Travel Speed of Forward w/ Ag @ Engine rated speed | 15.71 mph (25.28 km/h) |
Power Take-Off (PTO)
| PTO Type Trans | Independent |
| PTO Power | 37.6 hp (28 kW) |
| Rear PTO Speeds (1st) | 540 rpm |
| Mid PTO Speeds | 2,000 rpm (Optional) |
Brakes and Clutch
| Brakes | Wet Multi Disc |
| Clutch | Dry Single Plate |
Dimensions w/ AG Tire
| Length w/ 3-point hitch | 139.6 in. (3,547 mm) |
| Width | 65.6 in. (1,665 mm) |
| Height from Top of ROPS Cab | 103.1 in. (2,618 mm) |
| Wheelbase | 75.6 in. (1,920 mm) |
| Ground Clearance | 13.7 in. (350 mm) |
| Front Tread Ag Tires – Min | 55.2 in. (1,352 mm) |
| Rear Tread Ag Tires – Min | 52.1 in. (1,324 mm) |
| Turning Radius w/ Brake | 9.81 ft. (2.99 m) |
Hydraulics
| Pump | Gear |
| Pump Capacity (Max. Flow Rate) | 16.5 gpm (62.4 L/min) |

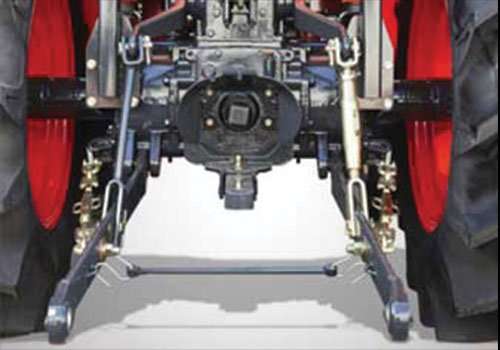

3-Point Hitch
| Standard Category | Category I |
| Lift Capacity, 24″ aft of hitch | 3,177 lbs. (1,441 kg) |
| Control Type | Position with Draft Control |
Weight
| Weight with Ag Tires | 3,998 lbs. (1,813.5 kg) |
Engine
| Engine Model | 3F183T |
| Engine Gross Power | 45 hp (33.6 kW) |
| Rated Speed | 2,600 rpm |
| No. of Cylinders | 3 |
| Fuel Type | Diesel |
| Aspiration | Turbo Charged |
| Displacement | 111.4 cu. in. (1,826 cc) |
| Fuel Tank Capacity | 14.8 gal. (56 L) |
Transmission
| Transmission Type | Hydrostatic |
| Shuttle | None |
| No. of Travel Speeds – Forward / Reverse | 3 Range |
| Min. Travel Speed of Forward w/ Ag @ Engine rated speed | 0 mph (0 km/h) |
| Max. Travel Speed of Forward w/ Ag @ Engine rated speed | 16.52 mph (26.59 km/h) |
Power Take-Off (PTO)
| PTO Type Trans | Independent |
| PTO Power | 33.9 hp (25.3 kW) |
| Rear PTO Speeds (1st) | 540 rpm |
| Mid PTO Speeds | 2,000 rpm (Optional) |
Brakes and Clutch
| Brakes | Wet Multi Disc |
| Clutch | None |
Dimensions w/ AG Tire
| Length w/ 3-point hitch | 139.6 in. (3,547 mm) |
| Width | 65.6 in. (1,665 mm) |
| Height from Top of ROPS | 103.1 in. (2,618 mm) |
| Wheelbase | 75.6 in. (1,920 mm) |
| Ground Clearance | 13.7 in. (350 mm) |
| Front Tread Ag Tires – Min | 55.2 in. (1,352 mm) |
| Rear Tread Ag Tires – Min | 52.1 in. (1,324 mm) |
| Turning Radius w/ Brake | 9.81 ft. (2.99 m) |
Hydraulics
| Pump | Gear |
| Pump Capacity (Max. Flow Rate) | 17.9 gpm (67.6 L/min) |
3-Point Hitch
| Standard Category | Category I |
| Lift Capacity, 24″ aft of hitch | 3,177 lbs. (1,441 kg) |
| Control Type | Position with Draft Control |
Weight
| Weight with Ag Tires | 3,989 lbs. (1,809.4 kg) |
Engine
| Engine Model | 3F183T |
| Engine Gross Power | 45 hp (33.6 kW) |
| Rated Speed | 2,600 rpm |
| No. of Cylinders | 3 |
| Fuel Type | Diesel |
| Aspiration | Turbo Charged |
| Displacement | 111.4 cu. in. (1,826 cc) |
| Fuel Tank Capacity | 14.8 gal. (56 L) |
Transmission
| Transmission Type | Hydrostatic |
| Shuttle | None |
| No. of Travel Speeds – Forward / Reverse | 3 Range |
| Min. Travel Speed of Forward w/ Ag @ Engine rated speed | 0 mph (0 km/h) |
| Max. Travel Speed of Forward w/ Ag @ Engine rated speed | 16.52 mph (26.59 km/h) |
Power Take-Off (PTO)
| PTO Type Trans | Independent |
| PTO Power | 33.9 hp (25.3 kW) |
| Rear PTO Speeds (1st) | 540 rpm |
| Mid PTO Speeds | 2,000 rpm (Optional) |
Brakes and Clutch
| Brakes | Wet Multi Disc |
| Clutch | None |
Dimensions w/ AG Tire
| Length w/ 3-point hitch | 139.6 in. (3,547 mm) |
| Width | 65.6 in. (1,665 mm) |
| Height from Top of ROPS Cab | 94.1 in. (2,390 mm) |
| Wheelbase | 75.6 in. (1,920 mm) |
| Ground Clearance | 13.7 in. (350 mm) |
| Front Tread Ag Tires – Min | 55.2 in. (1,352 mm) |
| Rear Tread Ag Tires – Min | 52.1 in. (1,324 mm) |
| Turning Radius w/ Brake | 9.81 ft. (2.99 m) |
Hydraulics
| Pump | Gear |
| Pump Capacity (Max. Flow Rate) | 17.9 gpm (67.6 L/min) |
3-Point Hitch
| Standard Category | Category I |
| Lift Capacity, 24″ aft of hitch | 3,177 lbs. (1,441 kg) |
| Control Type | Position with Draft Control |
Weight
| Weight with Ag Tires | 4,309 lbs. (1,954.5 kg) |
Engine
| Engine Model | 3F183T |
| Engine Gross Power | 50 hp (37.3 kW) |
| Rated Speed | 2,600 rpm |
| No. of Cylinders | 3 |
| Fuel Type | Diesel |
| Aspiration | Turbo Charged |
| Displacement | 111.4 cu.in. (1,826 cc) |
| Fuel Tank Capacity | 14.8 gal. (56 L) |
Transmission
| Transmission Type | Manual |
| Shuttle | Synchronized |
| Main Gear | Synchronized |
| No. of Travel Speeds – Forward / Reverse | 24 x 24 |
| Min. Travel Speed of Forward w/ Ag @ Engine rated speed | 0.11 mph (0.17 km/h) |
| Max. Travel Speed of Forward w/ Ag @ Engine rated speed | 15.71 mph (25.28 km/h) |
Power Take-Off (PTO)
| PTO Type Trans | Independent |
| PTO Power | 41.8 hp (31.2 kW) |
| Rear PTO Speeds (1st) | 540 rpm |
| Mid PTO Speeds | 2,000 rpm (Optional) |
Brakes and Clutch
| Brakes | Wet Multi Disc |
| Clutch | Dry Single Plate |
Dimensions w/ AG Tire
| Length w/ 3-point hitch | 139.6 in. (3,547 mm) |
| Width | 65.6 in. (1,665 mm) |
| Height from Top of ROPS | 103.1 in. (2,618 mm) |
| Wheelbase | 75.6 in. (1,920 mm) |
| Ground Clearance | 13.7 in. (350 mm) |
| Front Tread Ag Tires – Min | 55.2 in. (1,352 mm) |
| Rear Tread Ag Tires – Min | 52.1 in. (1,324 mm) |
| Turning Radius w/ Brake | 9.81 ft. (2.99 m) |
Hydraulics
| Pump | Gear |
| Pump Capacity (Max. Flow Rate) | 16.5 gpm (62.4 L/min) |
3-Point Hitch
| Standard Category | Category I |
| Lift Capacity, 24″ aft of hitch | 3,177 lbs. (1,441 kg) |
| Control Type | Position with Draft Control |
Weight
| Weight with Ag Tires | 3,978 lbs. (1,804.4 kg) |
Engine
| Engine Model | 3F183T |
| Engine Gross Power | 50 hp (37.3 kW) |
| Rated Speed | 2,600 rpm |
| No. of Cylinders | 3 |
| Fuel Type | Diesel |
| Aspiration | Turbo Charged |
| Displacement | 111.4 cu. in. (1,826 cc) |
| Fuel Tank Capacity | 14.8 U.S. gal. (56 L) |
Transmission
| Transmission Type | Hydrostatic |
| Shuttle | None |
| No. of Travel Speeds – Forward / Reverse | 3 |
| Min. Travel Speed of Forward w/ Ag @ Engine rated speed | 0 mph (0 km/h) |
| Max. Travel Speed of Forward w/ Ag @ Engine rated speed | 16.52 mph (26.59 km/h) |
Power Take-Off (PTO)
| PTO Type Trans | Independent |
| PTO Power | 38.9 hp (29 kW) |
| Rear PTO Speeds (1st) | 540 rpm |
| Mid PTO Speeds | 2,000 rpm (Optional) |
Brakes and Clutch
| Brakes | Wet Multi Disc |
| Clutch | None |
Dimensions w/ AG Tire
| Length w/ 3-point hitch | 139.6 in. (3,547 mm) |
| Width | 65.6 in. (1,665 mm) |
| Height from Top of ROPS | 103.1 in. (2,618 mm) |
| Wheelbase | 75.6 in. (1,920 mm) |
| Ground Clearance | 13.7 in. (350 mm) |
| Front Tread Ag Tires – Min | 55.2 in. (1,352 mm) |
| Rear Tread Ag Tires – Min | 52.1 in. (1,324 mm) |
| Turning Radius w/ Brake | 9.81 ft. (2.99 m) |
Hydraulics
| Pump | Gear |
| Pump Capacity (Max. Flow Rate) | 17.9 gpm (67.6 L/min) |
3-Point Hitch
| Standard Category | Category I |
| Lift Capacity, 24″ aft of hitch | 3,177 lbs. (1,441 kg) |
| Control Type | Position with Draft Control |
Weight
| Weight with Ag Tires | 4,000 lbs. (1,814.4 kg) |
Engine
| Engine Model | 3F183T |
| Engine Gross Power | 50 hp (37.3 kW) |
| Rated Speed | 2,600 rpm |
| No. of Cylinders | 3 |
| Fuel Type | Diesel |
| Aspiration | Turbo Charged |
| Displacement | 111.4 cu. in. (1,826 cc) |
| Fuel Tank Capacity | 14.8 U.S. gal. (56 L) |
Transmission
| Transmission Type | Hydrostatic |
| Shuttle | None |
| No. of Travel Speeds – Forward / Reverse | 3 |
| Min. Travel Speed of Forward w/ Ag @ Engine rated speed | 0 mph (0 km/h) |
| Max. Travel Speed of Forward w/ Ag @ Engine rated speed | 16.52 mph (26.59 km/h) |
Power Take-Off (PTO)
| PTO Type Trans | Independent |
| PTO Power | 38.9 hp (29 kW) |
| Rear PTO Speeds (1st) | 540 rpm |
| Mid PTO Speeds | 2,000 rpm (Optional) |
Brakes and Clutch
| Brakes | Wet Multi Disc |
| Clutch | None |
Dimensions w/ AG Tire
| Length w/ 3-point hitch | 139.6 in. (3,547 mm) |
| Width | 65.6 in. (1,665 mm) |
| Height from Top of Cab | 94.1 in. (2,390 mm) |
| Wheelbase | 75.6 in. (1,920 mm) |
| Ground Clearance | 13.7 in. (350 mm) |
| Front Tread Ag Tires – Min | 55.2 in. (1,352 mm) |
| Rear Tread Ag Tires – Min | 52.1 in. (1,324 mm) |
| Turning Radius w/ Brake | 9.81 ft (2.99 m) |
Hydraulics
| Pump | Gear |
| Pump Capacity (Max. Flow Rate) | 17.9 gpm (67.6 L/min) |
3-Point Hitch
| Standard Category | Category I |
| Lift Capacity, 24″ aft of hitch | 3,177 lbs. (1,441 kg) |
| Control Type | Position with Draft Control |
Weight
| Weight with Ag Tires | 4,315 lbs. (1,957.3 kg) |
Engine
| Engine Model | 3F183T |
| Engine Gross Power | 55 hp (41 kW) |
| Rated Speed | 2,600 rpm |
| No. of Cylinders | 3 |
| Fuel Type | Diesel |
| Aspiration | Turbo Charged |
| Displacement | 111.4 cu. in. (1,826 cc) |
| Fuel Tank Capacity | 14.8 U.S. gal. (56 L) |
Transmission
| Transmission Type | Hydrostatic |
| Shuttle | None |
| No. of Travel Speeds – Forward / Reverse | 3 Range |
| Min. Travel Speed of Forward w/ Ag @ Engine rated speed | 0 mph (0 km/h) |
| Max. Travel Speed of Forward w/ Ag @ Engine rated speed | 18.26 mph (29.38 km/h) |
Power Take-Off (PTO)
| PTO Type Trans | Independent |
| PTO Power | 43.1 hp (32.1 kW) |
| Rear PTO Speeds (1st) | 540 rpm |
| Mid PTO Speeds | 2,000 rpm (Optional) |
Brakes and Clutch
| Brakes | Wet Multi Disc |
| Clutch | None |
Dimensions w/ AG Tire
| Length w/ 3-point hitch | 139.6 in. (3,547 mm) |
| Width | 65.7 in. (1,669 mm) |
| Height from Top of ROPS | 103.1 in. (2,618 mm) |
| Wheelbase | 75.6 in. (1,920 mm) |
| Ground Clearance | 15.7 in. (400 mm) |
| Front Tread Ag Tires – Min | 53.3 in. (1,355 mm) |
| Rear Tread Ag Tires – Min | 52.5 in. (1,324 mm) |
| Turning Radius w/ Brake | 9.97 ft. (3.04 m) |
Hydraulics
| Pump | Gear |
| Pump Capacity (Max. Flow Rate) | 17.9 gpm (67.6 L/min) |
3-Point Hitch
| Standard Category | Category I & II |
| Lift Capacity, 24″ aft of hitch | 3,177 lbs. (1,441 kg) |
| Control Type | Position with Draft Control |
Weight
| Weight with Ag Tires | 4,183 lbs. (1,897.4 kg) |
Engine
| Engine Model | 3F183T |
| Engine Gross Power | 55 hp (41 kW) |
| Rated Speed | 2,600 rpm |
| No. of Cylinders | 3 |
| Fuel Type | Diesel |
| Aspiration | Turbo Charged |
| Displacement | 111.4 cu. in. (1,826 cc) |
| Fuel Tank Capacity | 14.8 U.S. gal. (56 L) |
Transmission
| Transmission Type | Manual |
| Shuttle | Synchronized |
| Main Gear | Synchronized |
| No. of Travel Speeds – Forward / Reverse | 24 x 24 |
| Min. Travel Speed of Forward w/ Ag @ Engine rated speed | 0.12 mph (0.19 km/h) |
| Max. Travel Speed of Forward w/ Ag @ Engine rated speed | 17.35 mph (27.93 km/h) |
Power Take-Off (PTO)
| PTO Type Trans | Independent |
| PTO Power | 46 hp (34.3 kW) |
| Rear PTO Speeds (1st) | 540 rpm |
| Mid PTO Speeds | 2,000 rpm (Optional) |
Brakes and Clutch
| Brakes | Wet Multi Disc |
| Clutch | Dry Single Plate |
Dimensions w/ AG Tire
| Length w/ 3-point hitch | 139.6 in. (3,547 mm) |
| Width | 65.7 in. (1,669 mm) |
| Height from Top of ROPS | 103.1 in. (2,618 mm) |
| Wheelbase | 75.6 in. (1,920 mm) |
| Ground Clearance | 15.7 in. (400 mm) |
| Front Tread Ag Tires – Min | 53.3 in. (1,355 mm) |
| Rear Tread Ag Tires – Min | 52.1 in. (1,324 mm) |
| Turning Radius w/ Brake | 9.97 ft. (3.04 m) |
Hydraulics
| Pump | Gear |
| Pump Capacity (Max. Flow Rate) | 16.5 gpm (62.4 L/min) |
3-Point Hitch
| Standard Category | Category I & II |
| Lift Capacity, 24″ aft of hitch | 3,177 lbs. (1,441 kg) |
| Control Type | Position with Draft Control |
Weight
| Weight with Ag Tires | 4,209 lbs. (1,909.2 kg) |
Engine
| Engine Model | 3F183T |
| Engine Gross Power | 55 hp (41 kW) |
| Rated Speed | 2,600 rpm |
| No. of Cylinders | 3 |
| Fuel Type | Diesel |
| Aspiration | Turbo Charged |
| Displacement | 111.4 cu. in. (1,826 cc) |
| Fuel Tank Capacity | 14.8 U.S. gal. (56 L) |
Transmission
| Transmission Type | Manual |
| Shuttle | Synchronized |
| Main Gear | Synchronized |
| No. of Travel Speeds – Forward / Reverse | 24 x 24 |
| Min. Travel Speed of Forward w/ Ag @ Engine rated speed | 0.12 mph (0.19 km/h) |
| Max. Travel Speed of Forward w/ Ag @ Engine rated speed | 17.35 mph (27.93 km/h) |
Power Take-Off (PTO)
| PTO Type Trans | Independent |
| PTO Power | 46 hp (34.3 kW) |
| Rear PTO Speeds (1st) | 540 rpm |
| Mid PTO Speed | 2,000 rpm (Optional) |
Brakes and Clutch
| Brakes | Wet Multi Disc |
| Clutch | Dry Single Plate |
Dimensions w/ AG Tire
| Length w/ 3-point hitch | 139.6 in. (3,547 mm) |
| Width | 65.7 in. (1,669 mm) |
| Height from Top of Cab | 94.1 in. (2,390 mm) |
| Wheelbase | 75.6 in. (1,920 mm) |
| Ground Clearance | 15.7 in. (400 mm) |
| Front Tread Ag Tires – Min | 53.3 in. (1,355 mm) |
| Rear Tread Ag Tires – Min | 52.5 in. (1,324 mm) |
| Turning Radius w/ Brake | 9.97 ft. (3.04 m) |
Hydraulics
| Pump | Gear |
| Pump Capacity (Max. Flow Rate) | 16.5 gpm (62.4 L/min) |
3-Point Hitch
| Standard Category | Category I & II |
| Lift Capacity, 24″ aft of hitch | 3,177 lbs. (1,441 kg) |
| Control Type | Position with Draft Control |
Weight
| Weight with Ag Tires | 4,562 lbs. (2,069.3 kg) |
Engine
| Engine Model | 3F183T |
| Engine Gross Power | 55 hp (41 kW) |
| Rated Speed | 2,600 rpm |
| No. of Cylinders | 3 |
| Fuel Type | Diesel |
| Aspiration | Turbo Charged |
| Displacement | 111.4 cu. in. (1,826 cc) |
| Fuel Tank Capacity | 14.8 U.S. gal. (56 L) |
Transmission
| Transmission Type | Hydrostatic |
| Shuttle | None |
| No. of Travel Speeds – Forward / Reverse | 3 Range |
| Min. Travel Speed of Forward w/ Ag @ Engine rated speed | 0 mph (0 km/h) |
| Max. Travel Speed of Forward w/ Ag @ Engine rated speed | 18.26 mph (29.38 km/h) |
Power Take-Off (PTO)
| PTO Type Trans | Independent |
| PTO Power | 43.1 hp (32.1 kW) |
| Rear PTO Speeds (1st) | 540 rpm |
| Mid PTO Speeds | 2,000 rpm (Optional) |
Brakes and Clutch
| Brakes | Wet Multi Disc |
| Clutch | None |
Dimensions w/ AG Tire
| Length w/ 3-point hitch | 139.6 in. (3,547 mm) |
| Width | 65.7 in. (1,669 mm) |
| Height from Top of Cab | 94.1 in. (2,390 mm) |
| Wheelbase | 75.6 in. (1,920 mm) |
| Ground Clearance | 15.7 in. (400 mm) |
| Front Tread Ag Tires – Min | 53.3 in. (1,355 mm) |
| Rear Tread Ag Tires – Min | 52.5 in. (1,324 mm) |
| Turning Radius w/ Brake | 9.97 ft. (3.04 m) |
Hydraulics
| Pump | Gear |
| Pump Capacity (Max. Flow Rate) | 17.9 gpm (67.6 L/min) |
3-Point Hitch
| Standard Category | Category I & II |
| Lift Capacity, 24″ aft of hitch | 3,177 lbs. (1,441 kg) |
| Control Type | Position with Draft Control |
Weight
| Weight with Ag Tires | 4,529 lbs. (2,054.3 kg) |
Engine
| Engine Model | 3F183T |
| Engine Gross Power | 60 hp (44.7 kW) |
| Rated Speed | 2,600 rpm |
| No. of Cylinders | 3 |
| Fuel Type | Diesel |
| Aspiration | Turbo Charged |
| Displacement | 111.4 cu. in. (1,826 cc) |
| Fuel Tank Capacity | 14.8 U.S. gal. (56 L) |
Transmission
| Transmission Type | Hydrostatic |
| Shuttle | None |
| No. of Travel Speeds – Forward / Reverse | 3 Range |
| Min. Travel Speed of Forward w/ Ag @ Engine rated speed | 0 mph (0 km/h) |
| Max. Travel Speed of Forward w/ Ag @ Engine rated speed | 18.26 mph (29.38 km/h) |
Power Take-Off (PTO)
| PTO Type Trans | Independent |
| PTO Power | 48.3 hp (36 kW) |
| Rear PTO Speeds (1st) | 540 rpm |
| Mid PTO Speed | 2,000 rpm (Optional) |
Brakes and Clutch
| Brakes | Wet Multi Disc |
| Clutch | None |
Dimensions w/ AG Tire
| Length w/ 3-point hitch | 139.6 in. (3,547 mm) |
| Width | 65.7 in. (1,669 mm) |
| Height from Top of ROPS | 103.1 in. (2,618 mm) |
| Wheelbase | 75.6 in. (1,920 mm) |
| Ground Clearance | 15.7 in. (400 mm) |
| Front Tread Ag Tires – Min | 53.3 in. (1,355 mm) |
| Rear Tread Ag Tires – Min | 52.5 in. (1,324 mm) |
| Turning Radius w/ Brake | 9.97 ft. (3.04 m) |
Hydraulics
| Pump | Gear |
| Pump Capacity (Max. Flow Rate) | 17.9 gpm (67.6 L/min) |
3-Point Hitch
| Standard Category | Category I & II |
| Lift Capacity, 24″ aft of hitch | 3,177 lbs. (1,441 kg) |
| Control Type | Position with Draft Control |
Weight
| Weight with Ag Tires | 4,198 lbs. (1,904.2 kg) |
Engine
| Engine Model | 3F183T |
| Engine Gross Power | 60 hp (44.7 kW) |
| Rated Speed | 2,600 rpm |
| No. of Cylinders | 3 |
| Fuel Type | Diesel |
| Aspiration | Turbo Charged |
| Displacement | 111.4 cu. in. (1,826 cc) |
| Fuel Tank Capacity | 14.8 U.S. gal. (56 L) |
Transmission
| Transmission Type | Hydrostatic |
| Shuttle | None |
| No. of Travel Speeds – Forward / Reverse | 3 Range |
| Min. Travel Speed of Forward w/ Ag @ Engine rated speed | 0 mph (0 km/h) |
| Max. Travel Speed of Forward w/ Ag @ Engine rated speed | 18.26 mph (29.38 km/h) |
Power Take-Off (PTO)
| PTO Type Trans | Independent |
| PTO Power | 48.3 hp (36 kW) |
| Rear PTO Speeds (1st) | 540 rpm |
| Mid PTO Speeds | 2,000 rpm (Optional) |
Brakes and Clutch
| Brakes | Wet Multi Disc |
| Clutch | None |
Dimensions w/ AG Tire
| Length w/ 3-point hitch | 139.6 in. (3,547 mm) |
| Width | 65.7 in. (1,669 mm) |
| Height from Top of Cab | 94.1 in. (2,390 mm) |
| Wheelbase | 75.6 in. (1,920 mm) |
| Ground Clearance | 15.7 in. (400 mm) |
| Front Tread Ag Tires – Min | 53.3 in. (1,355 mm) |
| Rear Tread Ag Tires – Min | 52.5 in. (1,324 mm) |
| Turning Radius w/ Brake | 9.97 ft. (3.04 m) |
Hydraulics
| Pump | Gear |
| Pump Capacity (Max. Flow Rate) | 17.9 gpm (67.6 L/min) |
3-Point Hitch
| Standard Category | Category I & II |
| Lift Capacity, 24″ aft of hitch | 3,177 lbs. (1,441 kg) |
| Control Type | Position with Draft Control |
Weight
| Weight with Ag Tires | 4,529 lbs. (2,054.3 kg) |
Financing
Fast, Secure & Confidential Online Finance Application
KIOTI Tractor Near Me
Looking for a KIOTI tractor dealer near you?
You can find a KIOTI tractor in Ft. Collins, CO, conveniently located to serve the surrounding areas.
Visit us today and explore our range of KIOTI tractors, parts, and services.
Get directions from your current location by clicking the button below.
LEGACY TRACTOR SALES & SERVICE, INC.
1845 North College Avenue • Ft. Collins, CO 80524
(970) 482-4803 • info@legacytractors.com
