KIOTI
NS Series Compact Tractors
KIOTI NS Series
NS4710 / NS4710 HSt
NS4710 CAB / NS4710 HST w/ CAB
NS5310 HST
NS6010 / NS6010 HST

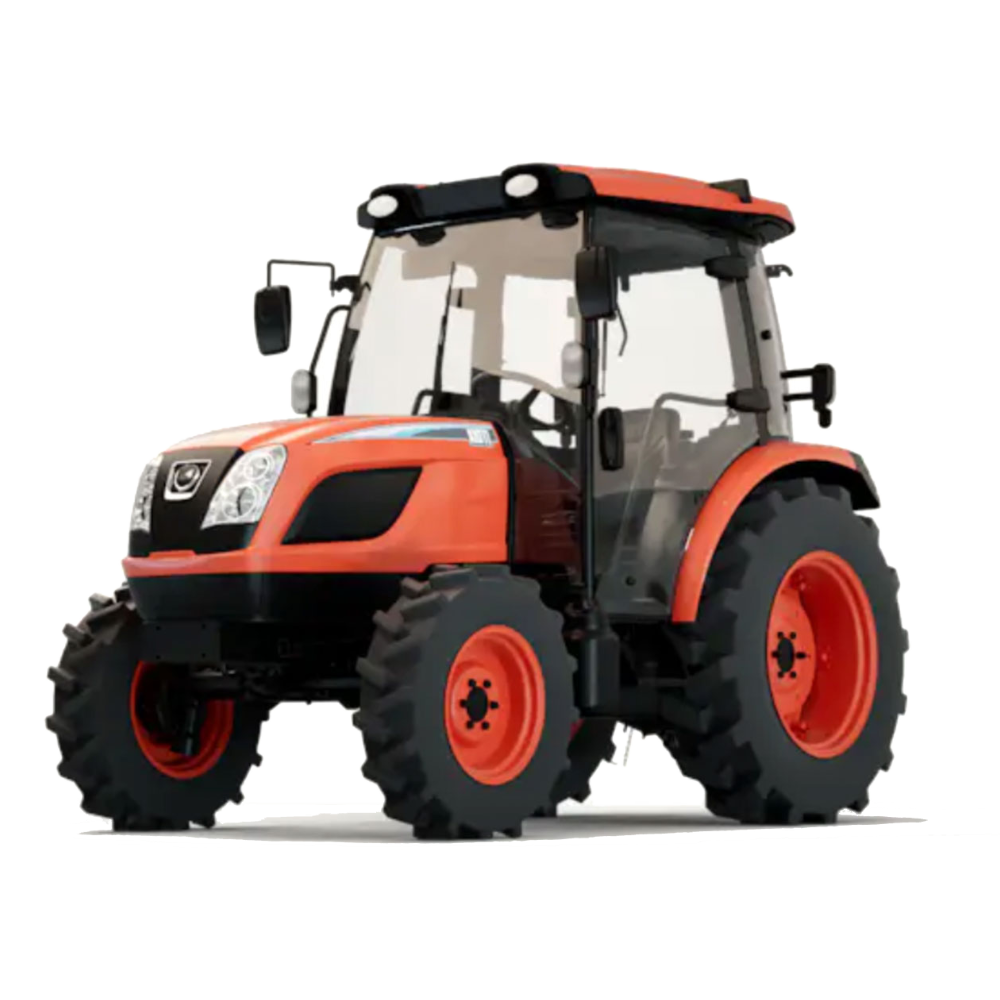

NS6010 w/ CAB / NS6010 HST w/ Cab
Discover the versatile NS Series compact tractors, perfectly designed to cater to the needs of value-conscious customers seeking robust machines with larger platforms to conquer even the most challenging tasks. Take a look at the impressive NS Series tractors showcased below and explore the possibilities they offer.
Call (970) 482-4803 for availability.
Specifications
Engine HP
NS4710 / CAB: 45
NS4710 HST / CAB: 45
NS5310 HST: 50.3
NS6010: 57.7
NS6010 CAB: 58
NS6010 HST / CAB: 57.7
PTO HP
NS4710 / CAB: 36.6
NS4710 HST / CAB: 36.3
NS5310 HST: 41.8
NS6010 / NS6010 CAB: 48.3
NS6010 HST / CAB: 47.9
Transmission
Manual or Synchro Shuttle
Max Lift Capacity
(24″ aft. of hitch) – varies per model
2,490 lbs.
NS SERIES SPECIFICATIONS
• click for more info •

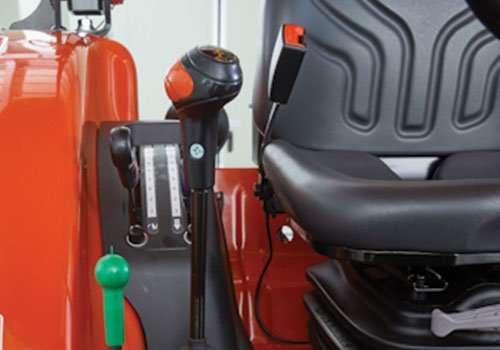

ERGONOMIC
JOYSTICK LEVER
The NS Series tractors come equipped with a joystick lever that has been meticulously designed with ergonomics in mind to ensure optimal comfort and ease of operation while using the front loader.

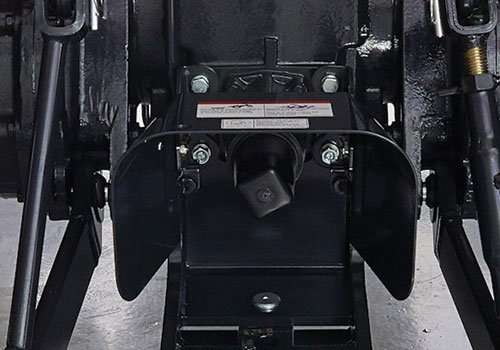

Hydraulic
Independent PTO
Engaging the standard rear PTO is a breeze – all it takes is a simple turn of a knob. Safety is of the utmost importance to us, which is why we’ve included a safety interlock to prevent the engine from starting if the PTO switch is left on. To provide even more convenience and flexibility, we offer a selectable manual or automatic PTO option on all our models. The automatic PTO option is especially useful as it automatically shuts off the PTO when the 3-point control is raised, eliminating any risk of exposure to running implements.
Eco-Friendly
Engine
The Common Rail Diesel Engine (CRDI) is a game-changer when it comes to improving fuel efficiency and reducing noise levels. This eco-friendly Tier 4 engine is a real winner, and it’s what makes the NS Series stand out from the competition. Thanks to this powerful engine, operators can enjoy a quiet work environment without sacrificing performance. So get ready to power through your work with ease, all while doing your part for the environment.
Simple
Maintenance
Maintaining your KIOTI tractor for long-lasting performance is now a breeze. The thoughtfully designed liftable hoods and removable side panels provide easy access for daily service checks, making routine maintenance hassle-free. With such convenience at your fingertips, keeping your tractor in top condition has never been simpler.
Build a Custom KIOTI Tractor Package
"*" indicates required fields
KIOTI Tractor Near Me
Looking for a KIOTI tractor dealer near you?
You can find a KIOTI tractor in Ft. Collins, CO, conveniently located to serve the surrounding areas.
Visit us today and explore our range of KIOTI tractors, parts, and services.
Get directions from your current location by clicking the button below.
Kioti NS SERIES SPECIFICATIONS
Engine
| Engine Model | 3HT-S4TM45A |
| Engine Gross Power | 44.9 hp ( 33.5 kW) |
| Rated Speed | 2,600 rpm |
| No. of Cylinders | 3 |
| Fuel Type | Diesel |
| Aspiration | Turbo Charged |
| Displacement | 111.4 cu. in. (1,826 cc) |
| Fuel Tank Capacity | 13.2 gal. (50 L) |
Transmission
| Transmission Type | Manual |
| Shuttle | Synchronized |
| Main Gear | Synchronized |
| No. of Travel Speeds – Forward / Reverse | 12 x 12 |
| Min. Travel Speed of Forward w/ Ag @ Engine rated speed | 0.9 mph (1.5 km/h) |
| Max. Travel Speed of Forward w/ Ag @ Engine rated speed | 16.7 mph (26.8 km/h) |
Power Take-Off (PTO)
| PTO Type Trans | Independent |
| PTO Power | 36.6 hp (27.3 kW) |
| Rear PTO Speed | 540 rpm |
| Mid PTO Speed | 2,000 rpm (Optional) |
Brakes and Clutch
| Brakes | Wet Disc Type |
| Clutch | Dry type single stage |
Dimensions w/ AG Tire
| Length w/ 3-point hitch | 136.4 in. (3,465 mm) |
| Width | 67.1 in. (1,705 mm) |
| Height from Top of ROPS | 98.4 in. (2,500 mm) w/o Beacon |
| Wheelbase | 75.5 in. (1,918 mm) |
| Ground Clearance | 13.4 in. (340 mm) |
| Front Tread Ag Tires – Min | 51.1 in. (1,297 mm) |
| Rear Tread Ag Tires – Min | 54.3 in. (1,380 mm) |
| Turning Radius w/ Brake | 10.94 ft. (3.34 m) |
Hydraulics
| Pump | Gear |
| Pump Capacity (Max. Flow Rate) | 16.5 gpm (62.4 L/min) |
3-Point Hitch
| Standard Category | Category I |
| Lift Capacity, 24″ aft of hitch | |
| Control Type | Position with Draft Control |
Weight
| Weight with Ag Tires | 4,027 lbs. (1,827 kg.) |
Engine
| Engine Model | 3HT-S4TH45A |
| Engine Gross Power | 44.9 hp ( 33.5 kW) |
| Rated Speed | 2,600 rpm |
| No. of Cylinders | 3 |
| Fuel Type | Diesel |
| Aspiration | Turbo Charged |
| Displacement | 111.4 cu. in. (1,826 cc) |
| Fuel Tank Capacity | 13.2 gal. (50 L) |
Transmission
| Transmission Type | Hydrostatic |
| Main Gear | Hydrostatic |
| No. of Travel Speeds – Forward / Reverse | 3 Range |
| Min. Travel Speed of Forward w/ Ag @ Engine rated speed | 0 mph (0 km/h) |
| Max. Travel Speed of Forward w/ Ag @ Engine rated speed | 17.5 mph (28.1 km/h) |
Power Take-Off (PTO)
| PTO Type Trans | Independent |
| PTO Power | 36.3 hp (27.1 kW) |
| Rear PTO Speed | 540 rpm |
| Mid PTO Speed | 2,000 rpm (Optional) |
Brakes and Clutch
| Brakes | Wet Disc Type |
| Clutch | None |
Dimensions w/ AG Tire
| Length w/ 3-point hitch | 136.4 in. (3,465 mm) |
| Width | 67.1 in. (1,705 mm) |
| Height from Top of ROPS | 98.4 in. (2,500 mm) w/o Beacon |
| Wheelbase | 75.5 in. (1,918 mm) |
| Ground Clearance | 13.4 in. (340 mm) |
| Front Tread Ag Tires – Min | 51.1 in. (1,297 mm) |
| Rear Tread Ag Tires – Min | 54.3 in. (1,380 mm) |
| Turning Radius w/ Brake | 10.94 ft. (3.34 m) |
Hydraulics
| Pump Capacity (Max. Flow Rate) | 16.5 gpm (62.4 L/min) |
3-Point Hitch
| Standard Category | Category I |
| Lift Capacity, 24″ aft of hitch | 2,493 lbs. (1,131 kg) |
| Control Type | Position with Draft Control |
Engine
| Engine Model | 3HT-S4TM45A |
| Engine Gross Power | 44.9 hp ( 33.5 kW) |
| Rated Speed | 2,600 rpm |
| No. of Cylinders | 3 |
| Fuel Type | Diesel |
| Aspiration | Turbo Charged |
| Displacement | 111.4 cu. in. (1,826 cc) |
| Fuel Tank Capacity | 13.2 gal. (50 L) |
Transmission
| Transmission Type | Manual |
| Shuttle | Synchronized |
| Main Gear | Synchronized |
| No. of Travel Speeds – Forward / Reverse | 12 x 12 |
| Min. Travel Speed of Forward w/ Ag @ Engine rated speed | 0.9 mph (1.5 km/h) |
| Max. Travel Speed of Forward w/ Ag @ Engine rated speed | 16.7 mph (26.8 km/h) |
Power Take-Off (PTO)
| PTO Type Trans | Independent |
| PTO Power | 36.6 hp (27.3 kW) |
| Rear PTO Speed | 540 rpm |
| Mid PTO Speed | 2,000 rpm (Optional) |
Brakes and Clutch
| Brakes | Wet Disc Type |
| Clutch | Dry type single stage |
Dimensions w/ AG Tire
| Length w/ 3-point hitch | 136.4 in. (3,465 mm) |
| Width | 67.1 in. (1,705 mm) |
| Height from Top of ROPS | 98.4 in. (2,500 mm) w/o Beacon |
| Wheelbase | 75.5 in. (1,918 mm) |
| Ground Clearance | 13.4 in. (340 mm) |
| Front Tread Ag Tires – Min | 51.1 in. (1,297 mm) |
| Rear Tread Ag Tires – Min | 54.3 in. (1,380 mm) |
| Turning Radius w/ Brake | 10.94 ft. (3.34 m) |
Hydraulics
| Pump | Gear |
| Pump Capacity (Max. Flow Rate) | 16.5 gpm (62.4 L/min) |
3-Point Hitch
| Standard Category | Category I |
| Lift Capacity, 24″ aft of hitch | |
| Control Type | Position with Draft Control |
Weight
| Weight with Ag Tires | 4,027 lbs. (1,827 kg.) |
Engine
| Engine Model | 3HT-S4TM45A |
| Engine Gross Power | 44.9 hp ( 33.5 kW) |
| Rated Speed | 2,600 rpm |
| No. of Cylinders | 3 |
| Fuel Type | Diesel |
| Aspiration | Turbo Charged |
| Displacement | 111.4 cu. in. (1,826 cc) |
| Fuel Tank Capacity | 13.2 gal. (50 L) |
Transmission
| Transmission Type | Manual |
| Shuttle | Synchronized |
| Main Gear | Synchronized |
| No. of Travel Speeds – Forward / Reverse | 12 x 12 |
| Min. Travel Speed of Forward w/ Ag @ Engine rated speed | 0.9 mph (1.5 km/h) |
| Max. Travel Speed of Forward w/ Ag @ Engine rated speed | 16.7 mph (26.8 km/h) |
Power Take-Off (PTO)
| PTO Type Trans | Independent |
| PTO Power | 36.6 hp (27.3 kW) |
| Rear PTO Speed | 540 rpm |
| Mid PTO Speed | 2,000 rpm (Optional) |
Brakes and Clutch
| Brakes | Wet Disc Type |
| Clutch | Dry type single stage |
Dimensions w/ AG Tire
| Length w/ 3-point hitch | 136.4 in. (3,465 mm) |
| Width | 67.1 in. (1,705 mm) |
| Height from Top of ROPS | 98.4 in. (2,500 mm) w/o Beacon |
| Wheelbase | 75.5 in. (1,918 mm) |
| Ground Clearance | 13.4 in. (340 mm) |
| Front Tread Ag Tires – Min | 51.1 in. (1,297 mm) |
| Rear Tread Ag Tires – Min | 54.3 in. (1,380 mm) |
| Turning Radius w/ Brake | 10.94 ft. (3.34 m) |
Hydraulics
| Pump | Gear |
| Pump Capacity (Max. Flow Rate) | 16.5 gpm (62.4 L/min) |
3-Point Hitch
| Standard Category | Category I |
| Lift Capacity, 24″ aft of hitch | |
| Control Type | Position with Draft Control |
Weight
| Weight with Ag Tires | 4,027 lbs. (1,827 kg.) |
Engine
| Engine Model | 3HT-S4TM45A |
| Engine Gross Power | 44.9 hp ( 33.5 kW) |
| Rated Speed | 2,600 rpm |
| No. of Cylinders | 3 |
| Fuel Type | Diesel |
| Aspiration | Turbo Charged |
| Displacement | 111.4 cu. in. (1,826 cc) |
| Fuel Tank Capacity | 13.2 gal. (50 L) |
Transmission
| Transmission Type | Manual |
| Shuttle | Synchronized |
| Main Gear | Synchronized |
| No. of Travel Speeds – Forward / Reverse | 12 x 12 |
| Min. Travel Speed of Forward w/ Ag @ Engine rated speed | 0.9 mph (1.5 km/h) |
| Max. Travel Speed of Forward w/ Ag @ Engine rated speed | 16.7 mph (26.8 km/h) |
Power Take-Off (PTO)
| PTO Type Trans | Independent |
| PTO Power | 36.6 hp (27.3 kW) |
| Rear PTO Speed | 540 rpm |
| Mid PTO Speed | 2,000 rpm (Optional) |
Brakes and Clutch
| Brakes | Wet Disc Type |
| Clutch | Dry type single stage |
Dimensions w/ AG Tire
| Length w/ 3-point hitch | 136.4 in. (3,465 mm) |
| Width | 67.1 in. (1,705 mm) |
| Height from Top of ROPS | 98.4 in. (2,500 mm) w/o Beacon |
| Wheelbase | 75.5 in. (1,918 mm) |
| Ground Clearance | 13.4 in. (340 mm) |
| Front Tread Ag Tires – Min | 51.1 in. (1,297 mm) |
| Rear Tread Ag Tires – Min | 54.3 in. (1,380 mm) |
| Turning Radius w/ Brake | 10.94 ft. (3.34 m) |
Hydraulics
| Pump | Gear |
| Pump Capacity (Max. Flow Rate) | 16.5 gpm (62.4 L/min) |
3-Point Hitch
| Standard Category | Category I |
| Lift Capacity, 24″ aft of hitch | |
| Control Type | Position with Draft Control |
Weight
| Weight with Ag Tires | 4,027 lbs. (1,827 kg.) |
Engine
| Engine Model | 3HT-S4TM45A |
| Engine Gross Power | 44.9 hp ( 33.5 kW) |
| Rated Speed | 2,600 rpm |
| No. of Cylinders | 3 |
| Fuel Type | Diesel |
| Aspiration | Turbo Charged |
| Displacement | 111.4 cu. in. (1,826 cc) |
| Fuel Tank Capacity | 13.2 gal. (50 L) |
Transmission
| Transmission Type | Manual |
| Shuttle | Synchronized |
| Main Gear | Synchronized |
| No. of Travel Speeds – Forward / Reverse | 12 x 12 |
| Min. Travel Speed of Forward w/ Ag @ Engine rated speed | 0.9 mph (1.5 km/h) |
| Max. Travel Speed of Forward w/ Ag @ Engine rated speed | 16.7 mph (26.8 km/h) |
Power Take-Off (PTO)
| PTO Type Trans | Independent |
| PTO Power | 36.6 hp (27.3 kW) |
| Rear PTO Speed | 540 rpm |
| Mid PTO Speed | 2,000 rpm (Optional) |
Brakes and Clutch
| Brakes | Wet Disc Type |
| Clutch | Dry type single stage |
Dimensions w/ AG Tire
| Length w/ 3-point hitch | 136.4 in. (3,465 mm) |
| Width | 67.1 in. (1,705 mm) |
| Height from Top of ROPS | 98.4 in. (2,500 mm) w/o Beacon |
| Wheelbase | 75.5 in. (1,918 mm) |
| Ground Clearance | 13.4 in. (340 mm) |
| Front Tread Ag Tires – Min | 51.1 in. (1,297 mm) |
| Rear Tread Ag Tires – Min | 54.3 in. (1,380 mm) |
| Turning Radius w/ Brake | 10.94 ft. (3.34 m) |
Hydraulics
| Pump | Gear |
| Pump Capacity (Max. Flow Rate) | 16.5 gpm (62.4 L/min) |
3-Point Hitch
| Standard Category | Category I |
| Lift Capacity, 24″ aft of hitch | |
| Control Type | Position with Draft Control |
Weight
| Weight with Ag Tires | 4,027 lbs. (1,827 kg.) |
Engine
| Engine Model | 3HT-S4TM45A |
| Engine Gross Power | 44.9 hp ( 33.5 kW) |
| Rated Speed | 2,600 rpm |
| No. of Cylinders | 3 |
| Fuel Type | Diesel |
| Aspiration | Turbo Charged |
| Displacement | 111.4 cu. in. (1,826 cc) |
| Fuel Tank Capacity | 13.2 gal. (50 L) |
Transmission
| Transmission Type | Manual |
| Shuttle | Synchronized |
| Main Gear | Synchronized |
| No. of Travel Speeds – Forward / Reverse | 12 x 12 |
| Min. Travel Speed of Forward w/ Ag @ Engine rated speed | 0.9 mph (1.5 km/h) |
| Max. Travel Speed of Forward w/ Ag @ Engine rated speed | 16.7 mph (26.8 km/h) |
Power Take-Off (PTO)
| PTO Type Trans | Independent |
| PTO Power | 36.6 hp (27.3 kW) |
| Rear PTO Speed | 540 rpm |
| Mid PTO Speed | 2,000 rpm (Optional) |
Brakes and Clutch
| Brakes | Wet Disc Type |
| Clutch | Dry type single stage |
Dimensions w/ AG Tire
| Length w/ 3-point hitch | 136.4 in. (3,465 mm) |
| Width | 67.1 in. (1,705 mm) |
| Height from Top of ROPS | 98.4 in. (2,500 mm) w/o Beacon |
| Wheelbase | 75.5 in. (1,918 mm) |
| Ground Clearance | 13.4 in. (340 mm) |
| Front Tread Ag Tires – Min | 51.1 in. (1,297 mm) |
| Rear Tread Ag Tires – Min | 54.3 in. (1,380 mm) |
| Turning Radius w/ Brake | 10.94 ft. (3.34 m) |
Hydraulics
| Pump | Gear |
| Pump Capacity (Max. Flow Rate) | 16.5 gpm (62.4 L/min) |
3-Point Hitch
| Standard Category | Category I |
| Lift Capacity, 24″ aft of hitch | |
| Control Type | Position with Draft Control |
Weight
| Weight with Ag Tires | 4,027 lbs. (1,827 kg.) |
Engine
| Engine Model | 3HT-S4TM45A |
| Engine Gross Power | 44.9 hp ( 33.5 kW) |
| Rated Speed | 2,600 rpm |
| No. of Cylinders | 3 |
| Fuel Type | Diesel |
| Aspiration | Turbo Charged |
| Displacement | 111.4 cu. in. (1,826 cc) |
| Fuel Tank Capacity | 13.2 gal. (50 L) |
Transmission
| Transmission Type | Manual |
| Shuttle | Synchronized |
| Main Gear | Synchronized |
| No. of Travel Speeds – Forward / Reverse | 12 x 12 |
| Min. Travel Speed of Forward w/ Ag @ Engine rated speed | 0.9 mph (1.5 km/h) |
| Max. Travel Speed of Forward w/ Ag @ Engine rated speed | 16.7 mph (26.8 km/h) |
Power Take-Off (PTO)
| PTO Type Trans | Independent |
| PTO Power | 36.6 hp (27.3 kW) |
| Rear PTO Speed | 540 rpm |
| Mid PTO Speed | 2,000 rpm (Optional) |
Brakes and Clutch
| Brakes | Wet Disc Type |
| Clutch | Dry type single stage |
Dimensions w/ AG Tire
| Length w/ 3-point hitch | 136.4 in. (3,465 mm) |
| Width | 67.1 in. (1,705 mm) |
| Height from Top of ROPS | 98.4 in. (2,500 mm) w/o Beacon |
| Wheelbase | 75.5 in. (1,918 mm) |
| Ground Clearance | 13.4 in. (340 mm) |
| Front Tread Ag Tires – Min | 51.1 in. (1,297 mm) |
| Rear Tread Ag Tires – Min | 54.3 in. (1,380 mm) |
| Turning Radius w/ Brake | 10.94 ft. (3.34 m) |
Hydraulics
| Pump | Gear |
| Pump Capacity (Max. Flow Rate) | 16.5 gpm (62.4 L/min) |
3-Point Hitch
| Standard Category | Category I |
| Lift Capacity, 24″ aft of hitch | |
| Control Type | Position with Draft Control |
Weight
| Weight with Ag Tires | 4,027 lbs. (1,827 kg.) |
Engine
| Engine Model | 3HT-S4TM45A |
| Engine Gross Power | 44.9 hp ( 33.5 kW) |
| Rated Speed | 2,600 rpm |
| No. of Cylinders | 3 |
| Fuel Type | Diesel |
| Aspiration | Turbo Charged |
| Displacement | 111.4 cu. in. (1,826 cc) |
| Fuel Tank Capacity | 13.2 gal. (50 L) |
Transmission
| Transmission Type | Manual |
| Shuttle | Synchronized |
| Main Gear | Synchronized |
| No. of Travel Speeds – Forward / Reverse | 12 x 12 |
| Min. Travel Speed of Forward w/ Ag @ Engine rated speed | 0.9 mph (1.5 km/h) |
| Max. Travel Speed of Forward w/ Ag @ Engine rated speed | 16.7 mph (26.8 km/h) |
Power Take-Off (PTO)
| PTO Type Trans | Independent |
| PTO Power | 36.6 hp (27.3 kW) |
| Rear PTO Speed | 540 rpm |
| Mid PTO Speed | 2,000 rpm (Optional) |
Brakes and Clutch
| Brakes | Wet Disc Type |
| Clutch | Dry type single stage |
Dimensions w/ AG Tire
| Length w/ 3-point hitch | 136.4 in. (3,465 mm) |
| Width | 67.1 in. (1,705 mm) |
| Height from Top of ROPS | 98.4 in. (2,500 mm) w/o Beacon |
| Wheelbase | 75.5 in. (1,918 mm) |
| Ground Clearance | 13.4 in. (340 mm) |
| Front Tread Ag Tires – Min | 51.1 in. (1,297 mm) |
| Rear Tread Ag Tires – Min | 54.3 in. (1,380 mm) |
| Turning Radius w/ Brake | 10.94 ft. (3.34 m) |
Hydraulics
| Pump | Gear |
| Pump Capacity (Max. Flow Rate) | 16.5 gpm (62.4 L/min) |
3-Point Hitch
| Standard Category | Category I |
| Lift Capacity, 24″ aft of hitch | |
| Control Type | Position with Draft Control |
Weight
| Weight with Ag Tires | 4,027 lbs. (1,827 kg.) |
Engine
| Engine Model | 3HT-S4TM45A |
| Engine Gross Power | 44.9 hp ( 33.5 kW) |
| Rated Speed | 2,600 rpm |
| No. of Cylinders | 3 |
| Fuel Type | Diesel |
| Aspiration | Turbo Charged |
| Displacement | 111.4 cu. in. (1,826 cc) |
| Fuel Tank Capacity | 13.2 gal. (50 L) |
Transmission
| Transmission Type | Manual |
| Shuttle | Synchronized |
| Main Gear | Synchronized |
| No. of Travel Speeds – Forward / Reverse | 12 x 12 |
| Min. Travel Speed of Forward w/ Ag @ Engine rated speed | 0.9 mph (1.5 km/h) |
| Max. Travel Speed of Forward w/ Ag @ Engine rated speed | 16.7 mph (26.8 km/h) |
Power Take-Off (PTO)
| PTO Type Trans | Independent |
| PTO Power | 36.6 hp (27.3 kW) |
| Rear PTO Speed | 540 rpm |
| Mid PTO Speed | 2,000 rpm (Optional) |
Brakes and Clutch
| Brakes | Wet Disc Type |
| Clutch | Dry type single stage |
Dimensions w/ AG Tire
| Length w/ 3-point hitch | 136.4 in. (3,465 mm) |
| Width | 67.1 in. (1,705 mm) |
| Height from Top of ROPS | 98.4 in. (2,500 mm) w/o Beacon |
| Wheelbase | 75.5 in. (1,918 mm) |
| Ground Clearance | 13.4 in. (340 mm) |
| Front Tread Ag Tires – Min | 51.1 in. (1,297 mm) |
| Rear Tread Ag Tires – Min | 54.3 in. (1,380 mm) |
| Turning Radius w/ Brake | 10.94 ft. (3.34 m) |
Hydraulics
| Pump | Gear |
| Pump Capacity (Max. Flow Rate) | 16.5 gpm (62.4 L/min) |
3-Point Hitch
| Standard Category | Category I |
| Lift Capacity, 24″ aft of hitch | |
| Control Type | Position with Draft Control |
Weight
| Weight with Ag Tires | 4,027 lbs. (1,827 kg.) |
LEGACY TRACTOR SALES & SERVICE, INC.
1845 North College Avenue • Ft. Collins, CO 80524
(970) 482-4803 • info@legacytractors.com
